5 Ton Portable Gantry Crane

5 Ton Portable Gantry Crane

Lifting Capacity: 5 ton
Span: m
Lifting Height: m
Working Class: A3
Note: We can design and manufacture the crane according your requirments and working conditions.

Get Price

Send Email

5 ton portable mobile gantry crane is a type of crane that can lift and move loads weighing up to 5 tons. 5 ton portable gantry crane is designed to be portable, meaning it can be easily moved from one location to another and assembled quickly. The 5 ton portable gantry crane is typically made up of two upright beams, a horizontal beam, and a trolley system that moves along the horizontal beam. This type of 5 ton portable mobile gantry crane is commonly used in construction, manufacturing, and other industries where heavy lifting is required.

5 ton portable gantry crane types with electric hoist specifications:

Small Portable Gantry Crane

Types: PT-1 5 Ton Portable Gantry Crane

  • Manual hoist trolley
  • Manual crane travelling
  • No site limitation
  • Standard profile steel

Capacity: 5 Ton
Max Height: 10 m
Max Span: 10 m
Hoist Type: Manual chain block with trolley
Crane Travelling: Manual universal wheels

Small Portable Gantry Crane

Types: PT-2 5 Ton Portable Gantry Crane

  • Electric hoist with motorized trolley
  • Manual crane travelling
  • Easy to operate

Capacity: 5 Ton
Max Height: 12 m
Max Span: 12 m
Hoist Type: Electric hoist with motorized trolley
Crane Travelling: Manual universal wheels

Small Portable Gantry Crane

Types: PT-3 5 Ton Portable Gantry Crane

  • Electric hoist with motorized trolley
  • Manual crane travelling
  • Electric turning mode

Capacity: 5 Ton
Max Height: 12 m
Max Span: 12 m
Hoist Type: Electric hoist with motorized trolley
Crane Travelling: Manual universal wheels

Small Portable Gantry Crane

Types: PT-4 5 Ton Portable Gantry Crane

  • Electric hoist with motorized trolley
  • Adjustable supporting legs

Capacity: 5 Ton
Max Height: 12 m
Max Span: 12 m
Hoist Type: Electric hoist with motorized trolley
Crane Travelling: Manual or motorized universal wheels

Small Portable Gantry Crane

Types: PT-5 5 Ton Portable Gantry Crane

  • Electric hoist with motorized
  • trolley
  • Motorized crane traveling
  • Rail-mounted crane traveling

Capacity: 5 Ton
Max Height: 10 m
Max Span: 15 m
Hoist Type: Electric hoist with motorized trolley
Crane Travelling: Rail-mounted motorized steel wheels

Small Portable Gantry Crane

Types: LT-1 5 Ton Portable Gantry Crane

  • Aluminum alloy structure
  • Light weight
  • Easy assemble and disassemble

Capacity: 5 t
Max Height: 8 m
Max Span: 8 m
Hoist Type: Electrical or manual
Crane Travelling: Manual universal wheels

Small Portable Gantry Crane

Types: LT-2 5 Ton Portable Gantry Crane

  • Aluminum alloy structure
  • Adjustable span
  • Light weight

Capacity: 5 t
Max Height: 8 m
Max Span: 8 m
Hoist Type: Electrical or manual
Crane Travelling: Fixed supporting leg

5 ton portable mobile gantry crane composition parts:

  • Hoist

  1. Manual chain hoist
  2. Electric wire rope hoist
  3. Electric chain hoist
Hoist

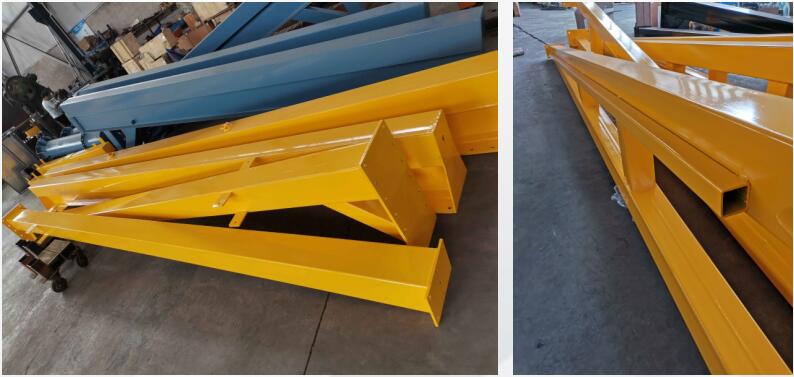

  • Main structure

Main structure
  • Wheels

Wheels
  • Control options

Control options

How do you assemble and disassemble a 5 ton portable gantry crane

To assemble a 5 Ton Portable Mobile Gantry Crane, follow these steps:

  • Lay out all the components of the crane, including the main beam, legs, crossbars, and trolley.
  • Assemble the legs and crossbars by connecting them with the provided bolts and nuts.
  • Attach the trolley to the main beam using the provided bolts and nuts.
  • Lift the main beam and attach it to the assembled legs and crossbars.
  • Secure all the bolts and nuts to ensure stability.

To disassemble a 5 ton mobile portable gantry crane, follow these steps:

  • Remove all loads from the crane.
  • Remove all bolts and nuts from the legs and crossbars.
  • Detach the trolley from the main beam.
  • Lower the main beam to the ground.
  • Disassemble the legs and crossbars by separating them from each other.

Always refer to the manufacturer's instructions for specific assembly and disassembly procedures for your particular model of 5 Ton Gantry Crane.

5 ton portable mobile gantry crane safety measures:

When using a 5 Ton Portable Gantry Crane, it is important to take several safety measures to ensure the safety of the operator and those around the crane. Some of these measures include:

  • Proper training: Only trained and authorized personnel should operate the crane.
  • Inspection: The crane should be inspected before each use to ensure that it is in good working condition.
  • Load capacity: The weight of the load should not exceed the crane's load capacity.
  • Clearance: Ensure there is enough clearance for the crane to move freely.
  • Ground conditions: The ground should be level and firm to prevent the crane from tipping over.
  • Communication: Use clear hand signals or a two-way radio to communicate with the operator.
  • Personal protective equipment: The operator and anyone in the area should wear appropriate personal protective equipment, such as hard hats and safety glasses.

How to choose a 5 ton mobile gantry crane:

  1. Load capacity: Ensure that the crane has a load capacity of 5 tons or more to meet your requirements.
  2. Lifting height: Consider the maximum lifting height of the crane and ensure it is sufficient for your intended applications.
  3. Portability: Look for a crane that is designed to be easily moved and assembled, allowing for flexibility in different work locations.
  4. Durability and quality: Choose a crane made from high-quality materials that can withstand heavy use and provide long-lasting performance.
  5. Safety features: Check for safety features such as overload protection, emergency stop buttons, and secure locking mechanisms to ensure safe operation.
  6. Price and budget: Consider your budget and compare prices of different models to find a crane that offers the best value for your investment.
