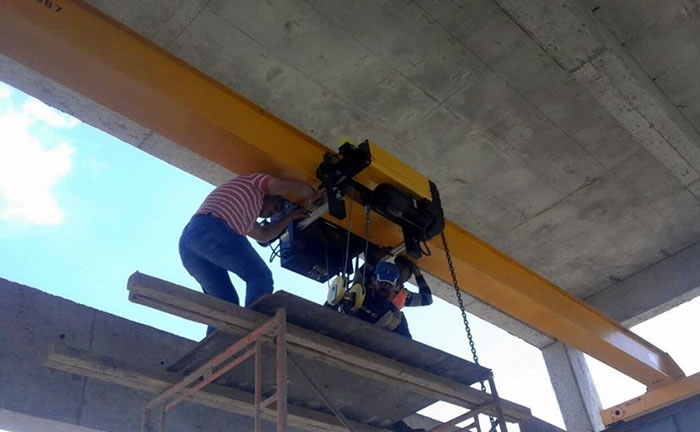

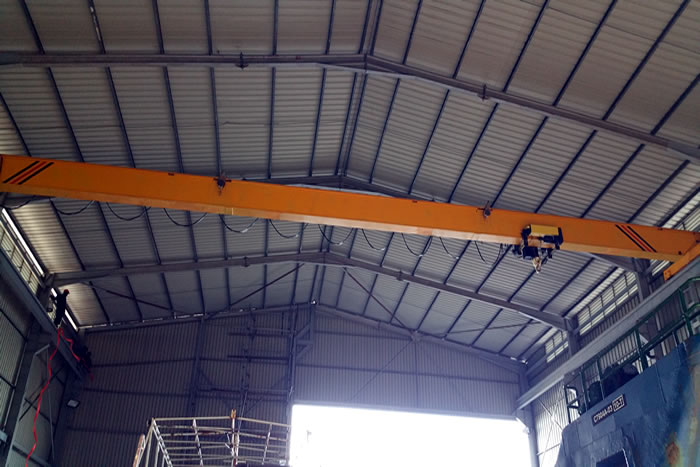

Single Girder Overhead Crane In General
The new European single girder overhead crane is designed and manufactured according to the standards of the Chinese crane according to the relevant standards of the European cranes.
Single girder overhead crane are mainly made up by main beams, end beams, trolleys, electrical parts and control rooms and other components. The standard lifting capacity are 5 t, 8 t, 10 t, 12.5 t, 16 t and 20 t. We also can customized the lifting capacity depend on customer requirements. Span is from 7.5 m to 31.5 m. The single girder overhead crane is used widely, it is not only extremely safe, good design, ergonomic, material handling convenient and efficient, but also save the warehouse space due to its compact size structure. Used for machinery manufacturing assembly, warehouse and other places, for the machine equipment manufacturing, maintenance, warehouses and other places, but not suitable for the self-explosion and fire to do dangerous, full corrosive gas medium and relative humidity greater than 85% of the work in the place, not suitable for hanging transport metal.
Single Girder Overhead Crane Metal Structure
The main beam is a partial rail box beam or steel beam, The end beam is made of welded steel (rectangular tube). Between the end beam and the main beam with 10.9 high-strength bolts group as a whole.
- Box girder for partial rail beam or H beam structure, the steel plate welding forming
- material of steel plate is Q235-B
- Vertical deflection is L/800
- All steel shot blasting pretreatment, achieve Sa2.5 level standard
- Carefully check and cleaned before welding steel, usually by the automatic welding machine for welding (MIG or semi-automatic welding)
- All weld for X-ray nondestructive flaw detection
- Beam of rectangular steel pipe or welding forming in the numerical control machine tool processing forming at a time, material of steel plate Q235-B
- Each end beam is equipped with double rims of wheels, buffers and derailment protection devices
- the maintenance platform (maintenance walkway) of double-beam crane is installed in the driving side of crane in the direction of the main beam
- The main beam and the end beam are connected with 10.9 high strength bolts to ensure the precision and smooth running of the whole machine.
Single Girder Overhead Crane Lifting Mechanism
SZW European electric hoist. The most advanced lifting mechanism, good performance of maintenance free (Please refer to European style Electric Hoist)
Single Girder Overhead Crane Traveling Mechanism
Single girder overhead crane traveling mechanism adopts even driving form, and divided into two solutions:
- The motor has a soft start characteristics, if it is not connected with starting resistance, there is no necessary to take other technical measures, power feeding directly, then it can reach the effect of "soft start" ., the motor itself with a flat friction brake, braking speed is adjustable. there is a very significant improvement on the impact for crane start and stop, the deceleration system is using closed hard tooth surface gear, grinding fine processing, smooth transmission, low noise, high load capacity, low temperature, long life.
- Adopt three in one " (brand: ABM, SEW, SZW) driving system, superior performance.
Single Girder Overhead Crane Electrics
Power supply: Safety sliding contact line
Equipped with protection function in case of default phase
Hoisting, trolley and single girder overhead crane movements are controlled separately.
They can run simultaneously or independently.
Dedicated vibration control contactor for single girder overhead crane
The control panels are corrosion resistant, protection class is IP55
All the plug sockets are with heavy duty plug heads, reliable sealing and firm inserting
The layout of components in the control box is reasonable, easy to maintenance
Plug connection parts are protected by insulating plastic casing
All cables are coded with numbers, easy to identify
The movement of trolley is powered by insulated PVC flat cable which is specially designed for cranes, and stress level of it can reach to 450/750V
The mobile power supply system for trolley consists of flat cable, galvanized slides and small cable jigger to achieve smooth sliding
Single Girder Overhead Crane Safety Protection
Anti-falling protection for the Three-in-One electric motor of trolley and single girder overhead crane prevents from accidental falling
Rain Cover: For lifting mechanism of outdoor cranes, electric cabinet and driving mechanism
Acousto-optic alarming device
Wireless anti-collision device
Single Girder Overhead Crane Control Mode
Pendant
Easy to control, no additional driver necessary
Double block button to achieve safety stop
Following type or independent sliding type suspended under hoist
Protection class IP65
Lifespan: 500,000 times
Remote Control
Easy to control, no additional driver necessary, to operate more freely on the ground
Tens of Thousands of frequency points, non-interference with each other
Two steps push button or joystick station with emergency stop
Protection class IP65
Lifespan: 500,000 times
Single Girder Overhead Crane Surface Spray Treatment
- The steel plate is subjected to shot blasting prior to soldering, grade SA2.5
- The total thickness of the steel coating is no less than 80 μm (Note: can be based on user requirements whole)
- The purchased parts retain their original paint quasi
- Protective paint is sprayed inside and outside the electrical cabinet
- All metal surfaces are protected against moisture and moisture during shipment
