Different types of jib crane - feature, advantage and application
Lifting Capacity: 0.25-16 ton
Span: 1-12 m
Lifting Height: 1-10 m
Working Class: A3
Note: We can design and manufacture the crane according your requirments and working conditions.
What is jib crane:
Jib crane is a type of material handling equipment used to lift, move, and position heavy objects in a relatively small area, typically within a limited radius. It consists of a vertical support column or mast, a horizontal boom or jib arm, and a hoist or lifting mechanism. Jib cranes come in various configurations, such as wall-mounted, floor-mounted, or freestanding, and they can be either manual or powered. They are commonly found in industrial settings, warehouses, workshops, and construction sites to facilitate the efficient handling of loads, making them a valuable tool for lifting and maneuvering heavy items in a localized workspace.
Comparison of the types of jib cranes in features, advantages and applications:
types 1. Wall-Mounted Jib Crane:
- Features: Mounted on a wall or vertical support structure, 180-degree rotation, fixed in place.
- Advantages: Space-saving, can be installed on existing structures, cost-effective.
- Used: Used in workshops, manufacturing facilities, and assembly lines for localized material handling.
types 2. Column-Mounted (Freestanding) Jib Crane:
- Features: Mounted on a freestanding column, 360-degree rotation, self-supporting.
- Advantages: Provides maximum coverage, versatile, and can handle heavy loads.
- Used: Common in larger manufacturing and industrial settings where versatile material handling is needed.

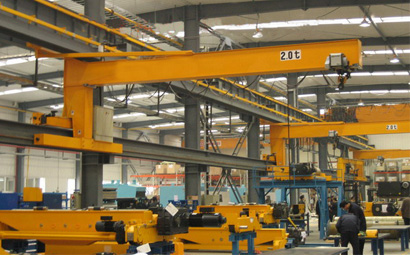

types 3. Wall Traveling Jib Crane:
- Features: Combines wall-mounted and traveling features, moves along a wall-mounted track.
- Advantages: Efficient for linear material transfer within a specific area, space-saving.
- Used: Suitable for long production lines, where materials need to be moved along a wall.

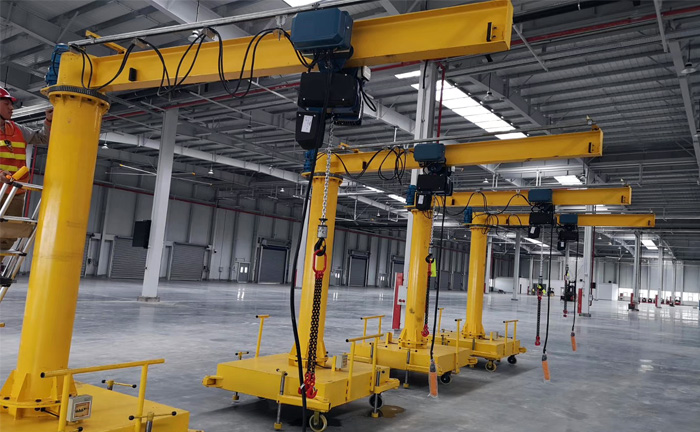

types 4. Portable Jib Crane:
- Features: Can be moved to different locations, typically on casters, not fixed.
- Advantages: Highly mobile, versatile, and easy to relocate as needed.
- Used: Used in small workshops, warehouses, and construction sites for temporary material handling.
types 5. Mast-Type Jib Crane:
- Features: Supported by a vertical mast or post, typically fixed in place.
- Advantages: Suitable for heavy-duty lifting, stability, and precision.
- Used: Commonly found in construction sites, shipyards, and heavy manufacturing facilities.
types 6. Telescoping Jib Crane:
- Features: Extendable boom for adjustable reach, various configurations.
- Advantages: Flexible reach, adaptable to changing work conditions.
- Used: Versatile for handling materials in variable environments, like shipping docks and outdoor construction sites.
Each types of jib cranes has its own set of features and advantages, making them suitable for different applications. The choice of the right jib crane depends on factors like available space, load capacity, mobility requirements, and the specific needs of the industry or workspace where they will be used.
Different types of jib cranes specifications and price:
| Jib Crane Types | Lifting capacity(t) | Span(m) | Lifting Height(m) | Price(USD) |
| Wall-Mounted Jib Crane | 0.25-10 ton | 3-6 m | 3-6 m | $1,000 to $40,000 |
| Column-Mounted (Freestanding) Jib Crane | 0.5-16 ton | 3-10 m | 3-10 m | $1,500 to $20,000 |
| Wall Traveling Jib Crane | 0.5-10 ton | 3-10 m | 3-10 m | $2,000 to $40,000 |
| Portable Jib Crane | 0.25-2 ton | 1-3m | 1-3m | $1,000 to $7,000 |
| Mast-Type Jib Crane | 0.25-5 ton | 3-10m | 3-10m | $2,000 to $30,000 |
| Telescoping Jib Crane | 0.5-10 ton | 3-12m | 3-10m | $5,000 to $60,000 |
What is Jib Crane Design Drawing:
Pillar mounted jib crane design drawing:
Wall mounted jib crane design drawing:
Wall traveling jib crane design drawing:
Designing the Right Types of Jib Cranes for Your Needs：
Designing a jib crane requires careful consideration of various factors to ensure safety, efficiency, and functionality. Here's an guide to jib crane design:
- Select Jib Crane Type: Choose between free-standing, wall-mounted, or mast-style jib cranes based on available space and application.
- Consider Environmental Factors: Evaluate the environmental conditions, such as temperature, humidity, and exposure to corrosive substances, to select appropriate materials and coatings.
- Calculate Load Radius: Determine the maximum distance the load will be moved horizontally (load radius) to calculate the required capacity and select the appropriate jib length.
- Structural Design: Ensure the crane structure is designed to withstand the calculated loads and forces. Consider factors like wind loads, dynamic forces, and the impact of sudden stops.
- Foundation Design: Design a stable foundation that can support the crane and resist the overturning moments. Verify the soil conditions and conduct a geotechnical analysis if necessary.
- Power Source and Control System Design: Select the appropriate power source (electric, pneumatic, hydraulic) and design the control system for smooth and precise crane operation.
- Safety Features: Incorporate safety features such as limit switches, overload protection, emergency stop buttons, and warning signals to ensure safe crane operation.
- Compliance with Standards: Ensure that the jib crane design complies with relevant industry standards, codes, and regulations.
Always consult with a qualified engineer or crane specialist during the design process to ensure compliance with safety standards and local regulations.
