3 Ton Portable Gantry Crane for Sale to United Arab Emirates
Lifting Capacity: 0.25-20 ton
Span: 2-12 m
Lifting Height: 3.554+20 m
Working Class: A3, A4
Note: We can design and manufacture the crane according your requirments and working conditions.
3 ton portable gantry crane have become an indispensable equipment in various industries in the United Arab Emirates. The portability and versatility of 3 ton portable gantry crane have been widely used in construction, manufacturing, and logistics fields in UAE. Whether indoors or outdoors, 3 ton portable gantry crane can quickly and efficiently complete various lifting tasks. At the same time, its compact structure and simple operation make it easier for workers to complete their work.
Our customer in UAE is expanding their factory to develop new business and requires a 3 ton portable gantry crane. UAE customer felt that we were very professional through our website and contacted us to send their 3 ton portable gantry crane detail requirements.
After careful calculation, our engineer has designed a solution for a portable gantry crane with a 3 ton capacity and 9-meter span. 3 ton portable gantry crane will provide the necessary lifting capacity and flexibility to meet the UAE customer's needs while maintaining the portability required for their operations. With this solution, the UAE customer can efficiently and safely move materials around their expanded factory and continue to grow their business.
3 ton portable gantry crane for sale to UAE specifications:
Lifting capacity: 3t
Lifting height: 3.554m+20m
Span: 9m

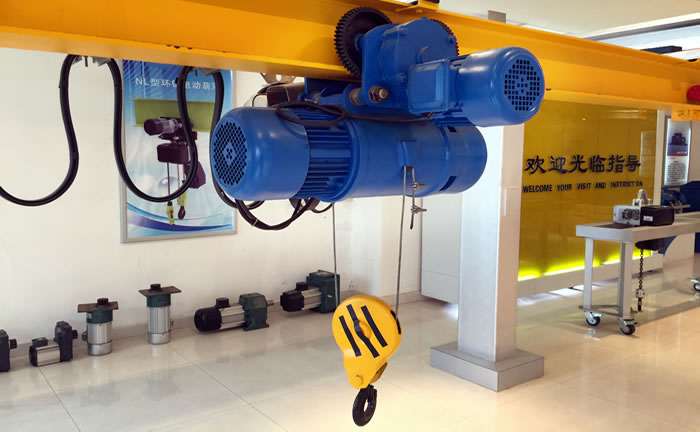

Lifting mechanism: Electric wire rope hoist
Motor Traveling power: 0.4KW
Motor Lifting power: 4.5 KW
Speed Traveling speed: 20 m/min
Speed Lifting speed: 8m/min
Working class: A3
Electric: Chint brand
Wire rope diameter: 13mm
Power supply:380V 50HZ 3P
Chain falls: 1
Control method: Remote control
3 ton portable gantry crane UAE design drawing:
3 ton portable gantry crane specifications components parts：
| Main structure |  |
Gantry crane adopts international profile and steel plate adopts laser cuttingwith smooth incision. All detachable design to enable convenient transportation and simple installation. High-strength 8.8 grade bolts are used to connect flange butt joints. Two-layer paint with anti-rust primer and car baking finish paint which is acid-resistant and high in hardness. |
| Motor |  |
Special designed Squirrel-cage motor for the electric hoist. Protection grade IP54, Insulation class F. |
| Electric trolley |  |
Alloy gear and wheels, 125% testing load of the rated capacity. Braking method please see the travelling motor details. |
| Hoist lifting reducer |  |
Totally enclosed type with Splash Lubrication, gear box shell pressure casting |
| Drum |  |
Self produced. Drums made of high quality seamless steel processed by CNC machine. Rope guide made of engineering plastic, light weight, excellent wear resistance, reducing tear and wear of wire rope |
| Wire rope |  |
High strength, Strength of extension: 1670 N/m2, Size: 6*37+FC 1670. excellent security |
| Hook |  |
Drop Forged, Plain ‘C’ type, Swiveling on Thrust Bearing, equipped with belt buckle and wire ropes sheath |
| Electrics |  |
Chint brand, Famous electric brand in China |
| Overload limiter |  |
For lifting protection, Monitor the crane working situation |
| Lifting limit switch |  |
For lifting protection, prevent the hook from knocking the hoist |
| Remote control |  |
Radio frequency control Safe and reliable |
3 ton portable gantry crane for sale to UAE installation:
Portable gantry crane for sale UAE package and delivery:
Why did the UAE customer choose us：
Thanks for the interest in Dongqi Crane from our UAE customer. As a professional crane manufacturer in China, we are committed to providing high-quality, reliable, and safe crane products and excellent services.
We adopt advanced production technology and high-quality materials to ensure that each crane has outstanding performance and long lifespan. Meanwhile, we have a highly qualified technical team that can customize according to customer needs and provide professional technical support and solutions.
In addition, we always put customer needs first and provide comprehensive pre-sales, in-sales, and after-sales services to ensure customer satisfaction. We believe that these advantages will make us your best partner.
Portable gantry crane applications in various industries in UAE:
- Construction Industry: Portable Gantry Crane can be used for lifting and moving heavy construction materials, such as steel beams, pipes, and concrete blocks.
- Manufacturing Industry: Portable Gantry Crane can be used for lifting and moving heavy machinery, raw materials, and finished products.
- Oil and Gas Industry: Portable Gantry Crane can be used for lifting and moving heavy equipment, such as drilling rigs, pipelines, and storage tanks.
- Shipping Industry: Portable Gantry Crane can be used for loading and unloading cargo from ships, as well as for moving cargo around the port.
- Aerospace Industry: Portable Gantry Crane can be used for lifting and moving aircraft parts, engines, and other equipment.
- Automotive Industry: Portable Gantry Crane can be used for lifting and moving heavy vehicles, such as trucks and buses, during maintenance and repair work.
Portable gantry crane certifications:
