Price of 5 Ton-21M H-7.5M, 5 Ton-7.4M H-13M and 6 Ton-7.4M H-22M European Double Girder Overhead Crane for Sale to United States

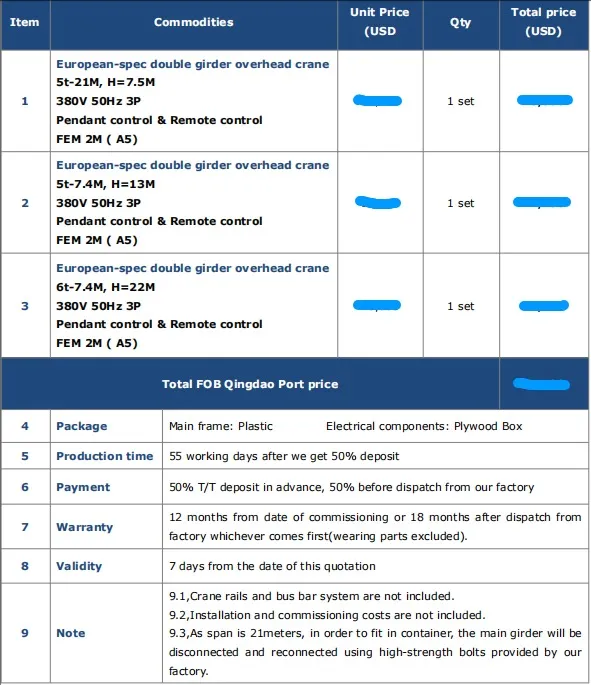

Price of 5 Ton-21M H-7.5M, 5 Ton-7.4M H-13M and 6 Ton-7.4M H-22M European Double Girder Overhead Crane for Sale to United States:

Technical Specifications of 5 Ton and 6 Ton European Double Girder Overhead Crane for Sale to United States:

Item	European type double girder overhead crane (QDX)
Lifting capacity	t	5	5	6
Lifting height	m	7.5	13	22
Span	m	21	7.4	7.4
Cross traveling speed	m/min	2.0-20	2.0-20	2.0-20
Crane traveling speed	m/min	2.0-20	2.0-20	2.0-20
Lifting speed	m/min	0.8-5	0.8-5	0.8-5
Working class	/	FEM (2m) A5
Power supply	V/Hz/P	380/50/3
Cross traveling power	KW	0.4*2	0.4*2	0.4*2
Crane traveling power	KW	0.75*2	0.75*2	0.75*2
Hoisting power	KW	4.9	4.9	4.9
Total power	KW	7.2	7.2	7.2
Max wheel load	KN	56.9	39.3	45.1
Total weight	T	8.8	3.9	3.9
Protection class	/	IP54
Insulation grade	/	F
Ambient temperature	/	-10℃~+40℃
Color	/	Yellow or as client’s demand
Country of origin	/	China
Manufacturer	/	Dongqi Group Yuantai Crane
Safety protection system	/	Phase protection system; Anti-collision system; Overload protection system;No-voltage protection system; Over-current protection system; Lifting limit protection system; Traveling limit protection system; Emergency stop protection system; Polyurethane buffer system

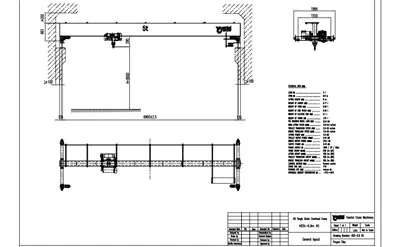

Drawing QDX5 Ton-7.4M-13M European Double Girder Overhead Crane for Sale to United States:

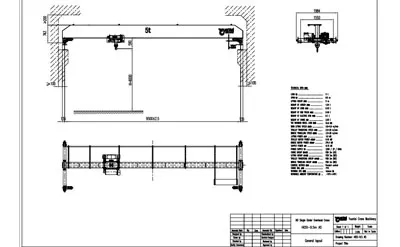

Drawing QDX5 Ton-21M-7.5M European Double Girder Overhead Crane for Sale to United States:

Drawing QDX6 Ton-7.4M-22M European Double Girder Overhead Crane for Sale to United States:

Configuration Details of 5 Ton and 6 Ton European Double Girder Overhead Crane for Sale to United States:

Main structure of 5 Ton and 6 Ton European Double Girder Overhead Crane for Sale:

	Main girders	Welded box-section beam, mainly use material Q235B carbon structural steel strong and elegant, easy to maintain Three-layer painting
	End carriages	Q235B carbon structural steel square tube torsionally rigid box section design with quality wheels and powerful Three-in-one motors. Three-layer painting

Lifting mechanism of 5 Ton and 6 Ton European Double Girder Overhead Crane for Sale:

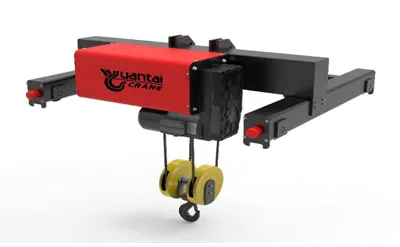

	Low headroom hoist	High performance European standard low headroom wire rope hoist with electric trolley,working class FEM 2M Insulation grade: F, Protection class: IP54
	Lifting motor& Travelling motor	Three-in-one motor Frequency converting control, make the lifting smooth and stable.Totally enclosed type with splash lubrication. Electromagnetic disc type brake system Insulation grade F,Protection class IP54.
	Drum	Self-produced. Drums made of high quality seamless steel processed by CNC machine.
	Wire rope	Rope structure 6×36SW, steel core.
	Hook	Rotating forged type with safety latch
	Bearing	Luoyang Brand, Chinese famous brand. High rotation accuracy and durability
	Wheels	Installed on the crane end carriages, high carbon steel material. Vacuum casting by our group, Intermedium quenching by top technique machinery antirust painting, low noise

Protection system of 5 Ton and 6 Ton European Double Girder Overhead Crane for Sale:

	Lifting limiter	For the vertical lifting stopper. Sensor is located in the drum, accurate and durable
	Overload limiter	Under overload condition, cut off the power of the crane.
	Buffers	Ployurethane material, used for anti-collision, equipped on the trolley and end carriages

Electric parts of 5 Ton and 6 Ton European Double Girder Overhead Crane for Sale:

	Electric Cabinet	CHINT brand, Chinese best brand
	Aviation plug	Easy to connect when installing
	Frequency converter	Chinese famous brand. Control the lifting and travelling motor, change the motor speed.
	Pendant control	Button: Up and down; left and right; front and back; start and stop; emergency;Safe and reliable;
	Remote control	Radio frequency control Safe and reliable
	Festoon cable	Supply power for the trolley and hoist, C type cable track, safe, reliable and flexible

Features to Look for in a 5 Ton and 6 Ton Overhead Crane:

When selecting a 5 ton and 6 ton overhead crane, consider the following top features:

1. Load Capacity and Stability: Ensure the overhead crane is designed to safely handle the 5 ton and 6 ton capacity, with features like reinforced structures and a solid base to maintain stability during operation.
2. Span Length: Evaluate the span length based on your facility's layout. The 5 ton and 6 ton overhead crane should have a suitable span that allows efficient coverage of the work area without compromising safety or performance.
3. Control System: Look for an intuitive control system, such as remote control or pendant controls, that enhances ease of use and operator safety. Features like variable speed control can improve precision during lifting and positioning.
4. Safety Features: Safety is paramount. Choose a 5 ton and 6 ton overhead crane with built-in safety features such as overload protection, limit switches, and emergency stop buttons. Additional safety options like anti-collision systems may also be beneficial.
5. Durability and Maintenance: Select a 5 ton and 6 ton overhead crane made from high-quality materials that can withstand the demands of your environment. Consider models that require minimal maintenance, and check for accessible parts for easy servicing.

Safety Features of  5 Ton and 6 Ton European Type Overhead Crane:

A 5 ton and 6 ton european type overhead crane is typically designed with advanced safety features to ensure reliable operation, prevent accidents, and protect both the operators and the equipment. Here are the key safety features commonly found in these european type overhead crane:

• Weight Limit Sensors: The 5 ton and 6 ton european type overhead crane is equipped with load limiters to prevent the overhead crane from lifting loads beyond its rated capacity. This ensures the european type overhead crane operates within safe limits and prevents damage to both the overhead crane and the lifted load.
• Overload Warning System: If the 5 ton and 6 ton european type overhead crane exceeds its capacity, the system will issue an audible or visual warning to the operator, or automatically stop further lifting.
• E-Stop Button: An emergency stop button is usually located on the crane’s control panel and at key access points to allow operators or personnel to stop overhead crane operation in an emergency.
• Automatic Cut-off: If any dangerous situation is detected, such as sudden equipment malfunction or failure of the electrical system, the 5 ton and 6 ton european type overhead crane will automatically cut power to prevent further risk.
• Limit Switches: These are used to prevent the european type overhead crane’s hook or trolley from colliding with other structures or parts of the overhead crane, especially when reaching the end of its travel.
• Bumper or Buffer Systems: The 5 ton and 6 ton european type overhead crane may have bumpers or buffer mechanisms installed at the end of its travel to absorb impact and protect the european type overhead crane structure from damage.
• Hoisting Brake: The hoisting motor is equipped with a mechanical brake that holds the load securely when the overhead crane is not in operation.
• Trolley and Travel Brakes: Brakes on the trolley and bridge prevent unwanted movement when the overhead crane is stationary.
• High-Quality Steel Frame: The 5 ton and 6 ton european type overhead crane's structural components are designed and fabricated from high-strength steel to provide durability and minimize the risk of structural failure.

How to Choose the Right 5 Ton and 6 Ton Overhead Crane for Your Operation:

• Load Requirements: Assess the specific loads you’ll be handling, including weight and dimensions.
• Span and Height: Measure the space where the 5 ton and 6 ton overhead crane will operate to determine the necessary span and lifting height.
• Duty Cycle: Consider how frequently the 5 ton and 6 ton overhead crane will be used—this impacts the durability and design.
• Control Options: Evaluate whether you prefer wired or wireless controls for ease of operation.
• Safety Features: Look for features like overload protection, emergency stop functions, and safety brakes.
• Maintenance and Support: Ensure the manufacturer provides adequate support and easy maintenance access.
• Budget: Set a budget that considers both initial purchase and long-term operational costs.

Processing of 5 Ton and 6 Ton European Double Girder Overhead Crane for Sale:

Package and Delivery of 5 Ton and 6 Ton European Double Girder Overhead Crane for Sale:

Product Certifications of Double Girder Overhead Crane:

Applications of 5 Ton and 6 Ton European Overhead Cranes in the United States:

1. Manufacturing and Industrial Applications: The United States manufacturing industry is experiencing a renaissance, especially in the automotive, electrical and metalworking industries. 5 ton overhead crane and 6 ton overhead crane help companies efficiently move heavy loads such as automotive parts, batteries and sheet metal.
2. Warehousing and Distribution Centers: With the rapid growth of e-commerce in the United States, demand for warehousing and distribution centers has surged. 5 ton and 6 ton european type overhead crane help move bulk items efficiently in automated warehouses.
3. Construction and infrastructure: The U.S. government has invested heavily in infrastructure construction, and 5 ton and 6 ton european type overhead crane are commonly used at construction sites to move heavy prefabricated components, steel and equipment, improving construction efficiency and reducing manual labor. Especially in renewable energy projects such as wind power and solar energy, european type overhead crane help move large components.
4. Aerospace and Research and Development: In the aerospace industry, 5 ton and 6 ton european type overhead crane are used to move heavy items such as engines, turbine blades and fuselage components, ensuring precision and safety in the manufacturing and testing process.
5. Equipment Maintenance & Heavy Duty Repairs: In the mining, agriculture and energy industries, equipment maintenance is critical. 5 ton and 6 ton european type overhead crane help maintenance crews move heavy parts, such as engines and large machinery, reducing downtime and increasing the service life of equipment.
