5 Ton 20m and H-18m European Type Single Girder Overhead Crane for Sale to United States

Technical specifications of the 5 Ton Overhead Crane of European type to United States:

Number	European type overhead crane
Lifting capacity	ton	5
Lifting height	m	18
Span	m	20
Hoist travel speed	m/min	2-20 (Frequency Conversion Control)
Crane travel speed		2-20 (Frequency Conversion Control)
Hoisting speed		0.8-5.0(Frequency conversion control)
Working classification	/	FEM 2M (ISO A5)
Power supply	V/Hz/Fase	220/60/3
Hoist travel power	KW	0.45
Traveling power of crane		0.75*2
Lifting power		4.9
Total power		6.85
Max. wheel load	KN	42.2
Total weight	ton	4.52
Protection class	/	IP54
Insulation grade	/	F
Ambient temperature	/	-10℃~+40℃
Country of origin	/	China
Recommended rail	/	P22

Configurations of the 5 Ton Overhead Crane from European type to United States:

Main structure		Main beam	Welded box section beam, mainly use material Q235B strong carbon structural steel, easy to maintain. Three-layer painting.

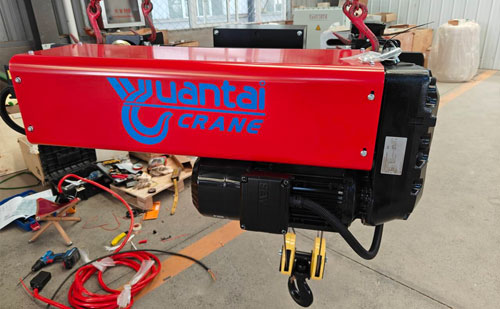

Lifting mechanism		Electric hoist (European type)	Variable frequency speed regulation. Gearboxes, drum motors, motors Insult level F Protection class IP54
		Drum	Self-produced. Drums made of high quality seamless steel processed by CNC machine.
		Wire rope	Rope structure 8 × 26SW, steel core.
		Rope guide	High strength nylon material, installed on the winding drum to guide the wire rope, Avoid constant winding of steel wire and prolong the service life of the drum.
		Hook	Pivot on thrust bearing, safety latch.
		Hoist lifting reducer	Drum precision planetary gear drive Lightweight and compact. Well sealed, no oil leakage.
Motors		Crane travel motor	Maintenance-free. Insulation grade F. IP54 protection class. Electromagnetic disc type braking system.
		Hoist lifting motor	Frequency conversion hoist motor. Protection class IP54.
		End carriages (headers)	Q235B square hollow carbon steel structure, provides horizontal travel for crane with motors.
		Wheels	Installed on crane end carriages as driving wheels, high carbon steel material. Vacuum casting by our group, Intermedium cooling by high technical machinery, anti-rust painting.
Electricians		Electrical cabinet and contactors	Brand CHINT, best Chinese brand, ABB Contactors IP54 protection class
		Festoon cable	Power supply for trolley, C type cable track, safe and reliable
		Remote control	Safe and reliable.
		Frequency converter	Inovance brand, Chinese famous brand. Control the lift and travel motor, change the motor speed.
		Aviation plug	Easy to connect to install
Protection system		Lifting limit switches	For lifting protection, prevent the hook from hitting the hoist
		Travel limit switches	For long travel, protect the hoist before it hits the object
		Automatic tracking recorder	Displays lifting weight and records crane operating hours. Records crane overload times, providing protection and alarms. Logging of hoist motor start times. Provide alarms and hoist motor overheat protection.
		Buffer	Plourethane material, used for anti-collision.

Design Drawings of 5 Ton 20m and H-18m European Type Single Girder Overhead Crane for Sale to United States:

Packing and Delivery of 5 Ton European Type Overhead Crane:

Safety Features of 5 Ton European Type Single Girder Overhead Crane:

• Overload Protection System: The system automatically detects if the load exceeds the 5 ton overhead crane’s capacity and prevents further operation until the load is reduced to a safe level.
• Limit Switches: These switches cut off power to the overhead crane’s motion when it reaches the end of its travel path (e.g., hoisting or trolley travel limit), preventing collisions and mechanical damage.
• Anti-Sway Control: Reduces the swinging motion of the load during hoisting or moving the 5 ton overhead crane, ensuring better control and safety.
• Emergency Stop Button: A large, easily accessible emergency stop button can immediately shut down all overhead crane operations, halting any movement of the hoist, trolley, or bridge.
• Safety Lock for Hook: The hook is equipped with a safety latch or locking mechanism that ensures the load remains securely attached until intentionally released.
• Trolley and Hoist Motor Protection: The motor has built-in thermal protection or overload protection to shut it down in case of excessive load or heat.
• Variable Frequency Drive: Provide precise control of the 5 ton overhead crane’s speed, helping to minimize sudden jerks or stops that could cause accidents or damage.
• Crane Stability and Structure: The 5 ton overhead crane’s design includes reinforced steel beams, proper load distribution, and safety factors to maintain stability under load conditions.

Why Choose a 5 Ton European Type Overhead Crane:

1. Superior Performance and Precision: The European Type design emphasizes compactness and high efficiency, offering precise control over load movements. This makes it ideal for tasks that require careful maneuvering, such as lifting fragile or heavy components. 5 ton european type overhead crane ensures smooth, controlled hoisting and trolley movement with variable frequency drives (VFD), reducing jerks and improving load positioning accuracy.
2. Durable and Efficient Design: 5 ton european type overhead crane are known for their high-quality components and sturdy construction, ensuring long service life even under demanding conditions. With high-strength steel, 5 ton european type overhead crane are built to endure tough working environments while keeping operational costs low through energy-efficient motors and advanced control systems.
3. Easy Operation and Control: The ergonomic control systems allow operators to easily manage 5 ton overhead crane movements, whether via a wireless remote control or a traditional pendant station.
4.   Space-Saving Design: Thanks to its compact single girder design, this 5 ton overhead crane optimizes space in your facility while providing efficient lifting capabilities. Its lightweight design reduces wear on tracks and structures, offering a smoother, quieter operation.
5. Flexible Application: It can be customized with additional features, such as double hook configurations, special lifting attachments, and advanced control systems, depending on your unique lifting requirements.
6.  Minimal Maintenance: Designed for low-maintenance operation, the European type 5 ton overhead crane offers easy access for inspections and routine maintenance, helping to minimize downtime and maximize productivity.

Key Benefits of the 5 Ton European Type Overhead Crane:

For businesses that require reliable, efficient, and safe lifting, the 5 ton european type single girder overhead crane is the perfect solution. Its combination of high-quality design, advanced safety features, and precise control ensures that your material handling tasks are executed smoothly and safely.

• Increased Productivity: Faster load handling, greater precision, and smoother operation all contribute to higher operational efficiency.
• Safety Assurance: Integrated safety mechanisms, including overload protection, anti-sway control, and emergency stops, ensure both operator safety and load security.
• Cost-Effectiveness: With energy efficiency, minimal maintenance, and long-lasting durability, the 5 ton overhead crane offers excellent return on investment (ROI).
• Customization: The 5 ton overhead crane can be tailored to meet the specific needs of your business, ensuring the best solution for your lifting tasks.

Space-Saving Design of 5 Ton European Type Single Girder Overhead Crane:

• Maximize Your Floor Space: A significant advantage of the single girder design is that it takes up much less vertical and horizontal space compared to traditional double girder cranes. 5 ton overhead crane can lift heavy loads without occupying excessive space, allowing your facility to operate more efficiently.
• Compact Footprint: The single girder configuration reduces the overall height and footprint, freeing up valuable floor space for other operations or more storage. This is especially important in industries where maximizing facility space is critical.
• Better Workflow Organization: By optimizing space, you can organize your workflow more effectively. Materials can be moved quickly between different workstations, minimizing congestion and ensuring smoother operations.

Features of the 5 Ton European Type Single Girder Overhead Crane:

• Compact and Lightweight Design: European-type 5 ton overhead crane are known for their compact and lightweight structure. This design maximizes the available workspace and reduces the overall load on the building structure.
• Advanced Hoist Mechanism: The hoisting system typically includes a European Standard Hoist, which is designed to be more compact and efficient than traditional hoists. It features advanced gearing systems and quality winches.
• Optimized Speed Control: European-type 5 ton overhead crane often feature optimized speed control for both the trolley and hoist movements, allowing for precise positioning of the load.
•  Customized Design Options: Many 5 ton European overhead cranes are customizable in terms of span, lifting height, and operating environment, allowing for flexibility based on specific needs. The 5 ton overhead crane can also be equipped with additional accessories such as magnet lifters, grabs, or hooks for specialized applications.
• Smooth and Quiet Operation: 5 ton overhead crane are known for their quiet operation, due to high-quality components and precise engineering.
• Reduced Maintenance Costs: Due to their high-quality materials and advanced design, European-type 5 ton overhead crane have longer service life and require less frequent maintenance than traditional models.
• Modular Design for Easy Installation: The modular design of the 5 ton overhead crane makes it easy to transport, assemble, and install, even in areas with limited space.
•  Flexible Mounting Options: European-type 5 ton overhead crane are versatile in their installation, with options to install on existing structures or new buildings. This flexibility allows them to be adapted to various factory layouts and operational requirements.

5 Ton European trpe Single Girder Overhead Cranes in the United States:

1. Manufacturing and Industrial Applications: The United States manufacturing industry is experiencing a renaissance, especially in the automotive, electrical and metalworking industries. 5 ton european type overhead crane help companies efficiently move heavy loads such as automotive parts, batteries and sheet metal. Their high precision and compact design make them suitable for precision manufacturing, such as the electronics and semiconductor industries.
2. Warehousing and Distribution Centers**: With the rapid growth of e-commerce in the United States, demand for warehousing and distribution centers has surged. 5 ton european type overhead crane help move bulk items efficiently in automated warehouses, reducing labor costs, increasing productivity, and ensuring the rapid flow of goods.
3. Construction and infrastructure**: The U.S. government has invested heavily in infrastructure construction, and 5 ton european type overhead crane are commonly used at construction sites to move heavy prefabricated components, steel and equipment, improving construction efficiency and reducing manual labor. Especially in renewable energy projects such as wind power and solar energy, european type overhead crane help move large components.
4. Aerospace and Research and Development**: In the aerospace industry, 5 ton european type overhead crane are used to move heavy items such as engines, turbine blades and fuselage components, ensuring precision and safety in the manufacturing and testing process. These 5 ton overhead crane are also widely used in research laboratories and test facilities.
5. Equipment Maintenance & Heavy Duty Repairs**: In the mining, agriculture and energy industries, equipment maintenance is critical. 5 ton european type overhead crane help maintenance crews move heavy parts, such as engines and large machinery, reducing downtime and increasing the service life of equipment.
