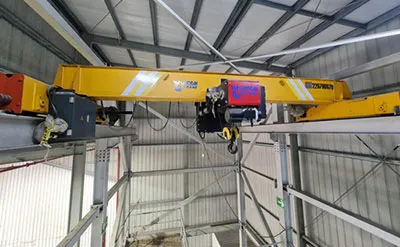

Specifications and Configurations of 5 Ton-9.5m and H-5m European Type Overhead Crane for Sale to Canada

Technical Specifications of the 5 Ton Overhead Crane of European type to Canada:

Number	European type overhead crane
Lifting capacity	ton	5
Lifting height	m	5
Span	m	9.5
Hoist travel speed	m/min	2-20 (Frequency Conversion Control)
Crane travel speed		2-20 (Frequency Conversion Control)
Hoisting speed		0.8-5.0(Frequency conversion control)
Working classification	/	FEM 2M (ISO A5)
Power supply	V/Hz/Fase	220/60/3
Hoist travel power	KW	0.45
Traveling power of crane		0.4*2
Lifting power		4.9
Total power		6.15
Max. wheel load	KN	34.8
Total weight	ton	2.05
Protection class	/	IP54
Insulation grade	/	F
Ambient temperature	/	-10℃~+40℃
Country of origin	/	China

Configurations of the 5 Ton Overhead Crane from European type to Canada:

Main structure		Main beam	Welded box section beam, mainly use material Q235B strong carbon structural steel, easy to maintain. Three-layer painting.
Lifting mechanism		Electric hoist (European type)	Variable frequency speed regulation. Gearboxes, drum motors, motors Insult level F Protection class IP54
		Drum	Self-produced. Drums made of high quality seamless steel processed by CNC machine.
		Wire rope	Rope structure 8 × 26SW, steel core.
		Rope guide	High strength nylon material, installed on the winding drum to guide the wire rope, Avoid constant winding of steel wire and prolong the service life of the drum.
		Hook	Pivot on thrust bearing, safety latch.
		Hoist lifting reducer	Drum precision planetary gear drive Lightweight and compact. Well sealed, no oil leakage.
Motors		Crane travel motor	Maintenance-free. Insulation grade F. IP54 protection class. Electromagnetic disc type braking system.
		Hoist lifting motor	Frequency conversion hoist motor. Protection class IP54.
		End carriages (headers)	Q235B square hollow carbon steel structure, provides horizontal travel for crane with motors.
		Wheels	Installed on crane end carriages as driving wheels, high carbon steel material. Vacuum casting by our group, Intermedium cooling by high technical machinery, anti-rust painting.
Electricians		Electrical cabinet and contactors	Protection class IP54
		Festoon cable	Power supply for trolley, C type cable track, safe and reliable
		Pendant control	Safe and reliable.
		Frequency converter	Control the lift and travel motor, change the motor speed.
		Aviation plug	Easy to connect to install
Protection system		Lifting limit switches	For lifting protection, prevent the hook from hitting the hoist
		Travel limit switches	For long travel, protect the hoist before it hits the object
		Automatic tracking recorder	Displays lifting weight and records crane operating hours. Records crane overload times, providing protection and alarms. Logging of hoist motor start times. Provide alarms and hoist motor overheat protection.
		Buffer	Plourethane material, used for anti-collision.

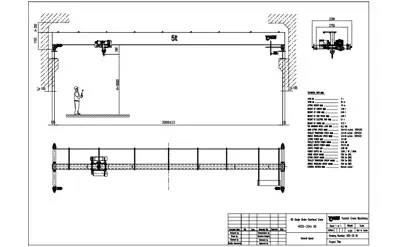

Drawing of European type 5 ton Overhead Crane to Canada:

5 Ton Euro-type Overhead Crane: Safe Operation and Precautions

The 5 ton Euro-type overhead crane is a heavy equipment widely used in industrial production and logistics transportation, and its operation needs to strictly follow the safety norms to ensure the safety of personnel and equipment. The following are the safety operation and precautions for 5 ton Euro-type overhead crane:

1. Preparation before operation

Equipment inspection

• Check the main parts of C, such as wire rope, hook, brake, limiter, etc., to ensure that there is no damage or abnormality.
• Confirm that there are no obstacles on the track and no obvious gaps or misalignments at the track joints.
• Check the electrical system to ensure that the power line is not damaged and the control buttons are sensitive and reliable.

Environment check

• Confirm that there are no unrelated people in the working area and the ground is level without obstacles.
• Check the operating range of 5 ton Euro-type overhead crane to make sure there is no interference from other equipments or buildings.

Operator Preparation

• Operators should be licensed and familiar with the equipment performance and operation procedure.
• Wear safety protection equipment, such as safety helmet and anti-skid shoes.

2. the safety norms in the operation

Lifting operation

• Before lifting, make sure the spreader matches with the load and the hook is completely closed.
• Lift slowly, avoid sudden acceleration or stopping to prevent the weight from shaking or falling off.
• After lifting, keep the weight at an appropriate height to avoid collision with surrounding objects.

Operation

• When the 5 ton Euro-type overhead crane is running, the operator needs to concentrate his attention and observe the surrounding environment.
• Avoid overloading operation, 5 ton overhead crane should be operated strictly according to the rated load.
• During operation, it is prohibited for personnel to stand under the heavy load or on the running path of 5 ton overhead crane.

Emergency handling

• In case of equipment abnormality or unexpected situation, immediately press the emergency stop button to stop all operations.
• Promptly report to the maintenance personnel, pending the resolution of the problem before continuing to operate.

3. Precautions after operation

Return the equipment to its place

• After the operation, park the 5 ton European overhead crane in the designated position and raise the hook to a safe height.
• Turn off the power and lock the control cabinet to prevent misoperation.

Equipment Maintenance

• Regularly maintain the 5 ton European-style overhead travelling crane, such as lubricating the tracks and checking the wear and tear of the wire ropes.
• Record the operation of the equipment to detect and deal with potential problems in time.

Environmental cleanup

• Clean up the work area and remove obstacles to ensure safety for the next operation.

Technical Advantages of 5 Ton European type Overhead Crane:

1. Structural design: 5 ton European-style overhead crane adopts modular design, which is convenient for transportation, installation and maintenance. The bridge structure is lightweight and of high strength, effectively reducing energy consumption.
2. Running performance: 5 ton European-style overhead travelling crane is equipped with high-performance motor and frequency conversion control system, with smooth running and accurate positioning. The lifting and running speeds are adjustable, adapting to the needs of different working conditions.
3. Safety performance: 5 ton European-style overhead travelling crane is equipped with multiple safety protection devices, such as limiters, overload protection, emergency stop button and so on. The braking system is sensitive and reliable to ensure the equipment stops safely in unexpected situations.
4. Intelligent function: support remote monitoring and fault diagnosis, improve the management efficiency of 5 ton European style overhead travelling crane. Optional automation control system is available.
5. Environmental protection and energy saving: 5 ton European-style overhead travelling crane adopts energy-efficient motor and low-noise design, which meets the requirements of environmental protection. Low energy consumption during operation reduces the cost of use.

Buying Guide for 5 Ton Euro-type Overhead Travelling Crane

1. Define the demand: Determine the crane's span, lifting height and other parameters according to the usage scenario (e.g. workshop, warehouse, wharf, etc.). Consider the working frequency and load type, and choose the suitable model and configuration of 5 ton overhead travelling crane.
2. Brand and quality: choose a famous brand to ensure the quality and after-sales service of 5 ton European-style overhead travelling crane. Check whether the key components of the overhead crane (e.g. motor, wire rope, brake, etc.) comply with the industry standards.
3. Functional configuration: choose the functional configuration according to the actual demand, such as frequency conversion control, automation system, remote monitoring, etc. Confirm whether the safety protection devices of 5 ton overhead crane are complete to ensure safe operation.
4. Installation and maintenance: Understand the installation requirements of 5 ton European overhead travelling crane and make sure the site conditions meet the installation standards. Choose the supplier who provides perfect after-sales service, which is convenient for maintenance and troubleshooting in the later stage.
5. Costing: Comprehensively consider the price of 5 ton European overhead travelling crane, operating costs, maintenance costs and other factors, and choose cost-effective products. Avoid blindly pursuing low price to ensure that the quality and performance of the overhead crane meet the demand.

Application of the 5 Ton European Type Overhead Crane in Canada:

1. Manufacturing and Industrial Applications: Canada's manufacturing sector, particularly in automotive, aerospace, and heavy machinery, benefits from the precise lifting capabilities of the 5 ton european overhead crane. The country's strong aerospace industry, with companies like Bombardier and Magellan Aerospace, relies on overhead cranes for assembling aircraft components and materials handling.
2. Mining and Energy Sector: Canada is a global leader in mining, particularly in provinces like Ontario, Quebec, and British Columbia. The 5 ton european overhead crane is vital for lifting and moving heavy mining equipment, parts, and materials within mining plants and warehouses. With Canada's push for sustainable energy and increased focus on oil sands in Alberta, such 5 ton european overhead crane support the energy industry in moving equipment across refineries, power plants, and construction sites.
3. Construction and Infrastructure Projects: With Canada’s infrastructure development, especially in urban centers like Toronto, Vancouver, and Montreal, there is a demand for overhead cranes to handle the heavy lifting required for high-rise buildings, bridges, and public works projects. The 5 ton european overhead crane fits perfectly for tasks like moving steel beams, concrete blocks, and other heavy materials in construction yards or manufacturing plants that supply building materials.
4. Ports and Logistics: The 5 ton overhead crane plays a critical role in Canada's ports, including those in Vancouver and Halifax, where it helps in unloading and transporting containers and bulk materials.
