10 Ton Double Girder Gantry Crane Specification

Lifting Capacity: 10 ton
Span: 18-35 m
Lifting Height: 10-12 m
Working Class: A5,A6
Note: We can design and manufacture the crane according your requirments and working conditions.

Get Price

Send Email

10 ton double girder gantry crane is a type of heavy duty crane designed for outdoor applications such as shipping yards, construction sites, and warehouses. 10 ton double girder gantry crane is composed of two bridge girders supported by legs that run on rails or wheels. The 10 ton double girder gantry crane specification is capable of lifting and moving heavy loads up to 10 tons and operates on an AC 3-phase 380V 50Hz power supply. The crane is equipped with safety features such as overload protection, emergency stop button, limit switches, and other safety devices as required by the customer. The 10 ton double girder gantry crane is designed for efficient and reliable operation, making it ideal for heavy-duty lifting tasks in various industrial settings.

10 ton double girder gantry crane specification:

Lifting Capacity	t	10
Span(S)	m	18	22	26	30	35
Lifting Height	m	10	10	10	12	12
Lifting Speed	m/min	8.5
Trolley Speed	m/min	43.8
Crane Speed	m/min	37.7		40.1
Total Power Supply	KW	36.5	36.5	45.5	45.5	45.5
Max. Wheel Load	KN	225	228	245	290	310
Recommend rail		P43

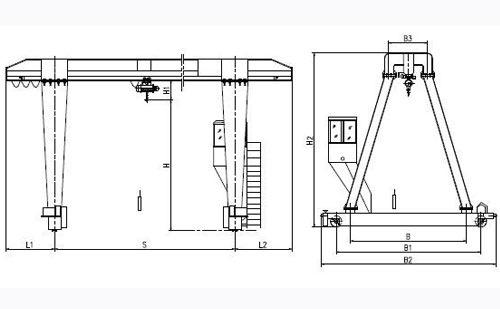

Main Dimension	mm	18	22	26	30	35
Total Height	H4	14580	14580	14580	16590	16590
Crane Wheel Tread	W	8000	8000	8500	9500	9500
Total Width	B	9554	9554	10350	11350	11350
Left Cantilever	L1	6500	6500	7500	9000	9000
Right Cantilever	L2	6500	6500	7500	9000	9000
Hook Left Limitation	S1	5000	5000	6000	7500	7500
Hook Right Limitation	S2	5000	5000	6000	7500	7500
Trolley track gauge	K	2000

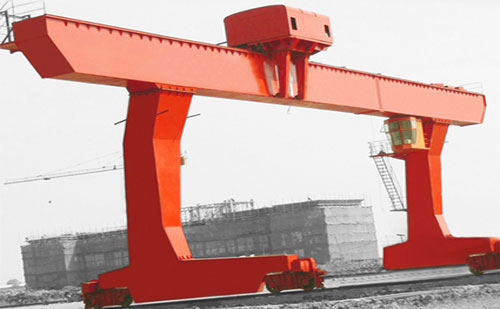

Main structure and features of 10 ton double girder gantry crane for sale:

10 ton gantry crane mainly consists of four parts: gantry, trolley, crane running mechanism, and electrical system.

Gantry: The gantry is the main structure of the crane, consisting of two bridge girders and supporting legs. The bridge girders are connected by a trolley rail, which supports the trolley and enables it to move along the length of the gantry. The supporting legs are usually equipped with wheels or rails for easy movement of the crane.
Trolley: The trolley is the part of the crane that carries the load, consisting of a hoisting mechanism and a trolley frame. The hoisting mechanism includes a wire rope hoist or chain hoist, which lifts and lowers the load. The trolley frame supports the hoisting mechanism and allows it to move across the width of the gantry.
Crane running mechanism: The crane running mechanism includes the motors, gearboxes, brakes, and other components that enable the crane to move along the length of the gantry. The motors provide power to the wheels or rails on the supporting legs, allowing the crane to move forward and backward.
Electrical system: The electrical system includes the control panel, power supply, sensors, and other components that enable the crane to operate safely and efficiently. The control panel allows the operator to control the movement of the crane and hoist using either a pendant or wireless remote control.

10 ton double girder gantry crane applications:

A 10 ton double girder gantry crane is a versatile lifting equipment that can be used in various industries for heavy-duty lifting tasks. the 10 ton double girder gantry crane is ideal for heavy-duty lifting tasks in various industrial settings. It is designed for efficient and reliable operation, making it an essential piece of equipment for many businesses.

Shipping yards: The crane can be used to load and unload cargo from ships and transport them to storage areas.
Construction sites: The crane can be used to lift and move heavy building materials such as steel beams, concrete blocks, and prefabricated structures.
Warehouses: The crane can be used to move heavy goods and materials within the warehouse, such as pallets, containers, and machinery.
Manufacturing plants: The crane can be used to lift and move heavy equipment and machinery during the manufacturing process.
Power plants: The crane can be used to lift and move heavy components such as turbines, generators, and transformers.

10 ton double girder gantry crane advantages:

High lifting capacity: The crane is capable of lifting heavy loads up to 10 tons, making it suitable for heavy-duty lifting tasks.
Wide span: The crane has a wide span of 18-35 meters, which allows it to cover a large area and lift loads from different positions.
Efficient operation: The crane is designed for efficient operation, with high lifting and trolley running speeds that enable quick and smooth movement of loads.
Versatility: The crane can be used in various industries and applications, such as shipping yards, construction sites, warehouses, and manufacturing plants.
Durability: The crane is built with high-quality materials and components that are designed to withstand harsh environments and heavy usage.
Safety features: The crane is equipped with various safety features such as overload protection, emergency stop button, limit switches, and other safety devices that ensure safe operation.

10 ton double girder gantry crane installation guide:

Site preparation: The first step is to prepare the installation site by ensuring that the ground is level and able to support the weight of the crane. The site should also have sufficient clearance for the crane to move and lift loads.
Assembly of the gantry: The gantry is assembled by connecting the two bridge girders and supporting legs. The trolley rail is then installed on the bridge girders, and the supporting legs are positioned on the ground.
Installation of the hoisting mechanism: The hoisting mechanism, such as a wire rope hoist or chain hoist, is installed on the trolley frame. The hoist is then connected to the hook block, which is used to lift and lower loads.
Installation of the crane running mechanism: The crane running mechanism, which includes the motors, gearboxes, and brakes, is installed on the supporting legs. The motors are connected to the wheels or rails on the supporting legs, allowing the crane to move forward and backward.
Electrical wiring: The electrical system, including the control panel, power supply, sensors, and other components, is wired according to the manufacturer's instructions. The control panel should be installed in a location that allows the operator to have a clear view of the crane and the load.
Testing and inspection: After installation, the crane should be tested and inspected to ensure that it is operating safely and efficiently. The load test should be conducted to verify that the crane can lift and move loads within its rated capacity.

10 ton double girder gantry crane maintenance:

Visual inspection: Conduct a visual inspection of the crane before each use to check for any signs of damage or wear. Look for cracks, dents, or other damage on the bridge girders, supporting legs, and other components.
Lubrication: Apply lubricant to the moving parts of the crane, such as the wheels, gears, and bearings, to ensure smooth operation.
Electrical system check: Check the electrical system of the crane, including the control panel, wiring, and sensors, to ensure that they are working properly.
Cleanliness: Keep the crane clean and free from debris to prevent damage or interference with its operation.
Load testing: Conduct periodic load testing to ensure that the crane is operating within its rated capacity and that it can lift and move loads safely and efficiently.
Maintenance schedule: Follow a regular maintenance schedule as recommended by the manufacturer to ensure that the crane is properly maintained and serviced.
