Different types 1 Ton Electric Chain Hoist Specification for Sale

Lifting Capacity: 1 ton
Span: m
Lifting Height: 3-120 m
Working Class: A3, A4
Note: We can design and manufacture the crane according your requirments and working conditions.

Get Price

Send Email

1 ton electric chain hoist is a high-performance and high-reliability lifting equipment. It consists of an electric motor, a transmission mechanism, and a chain wheel. The product has a compact structure, small size, and light weight, which makes it easy to carry and move. The product adopts the most advanced international technology, and all internal gears are subjected to high-temperature quenching, which increases the wear resistance and toughness of the gears and makes the gear meshing tight. In addition, the 1 ton electric chain hoist is easy to operate and widely applicable, and can be widely used in factories, warehouses, docks and other places for lifting operations. Whether in terms of weight or volume, the 1 ton electric chain hoist is an excellent lifting equipment that is indispensable in various lifting operations.

Different types of 1 ton electric chain hoist specification:

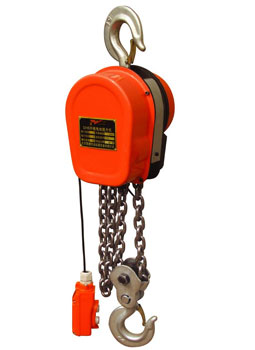

DHS series 1 ton electric chain hoist for sale:

Lifting capacity: 1t
Lift speed 5m/min: 2.2
Lift height m: 3-12m
Disk motor type: YHPE500—4
Power: 500W
Rotating speed: 1380r/min
Voltage: 380V
Dead weight: 3m.36Kg 6m.40Kg

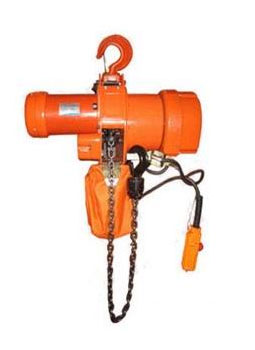

TCH series 1 ton electric chain hoist for sale:

Lifting capacity (T): 1t
Lift height（M）: 1-50
Lift speed m/min: 6.2
Power（kw）50HZ/60HZ: 1.17/1.4
Lift chain diameter(mm): 7.1
Lift chain quantity: 1
Testing loading（T):1.25
Size (mm): 530
Net weight (kg): 53

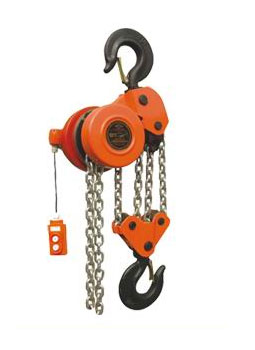

DHP series 1 ton electric chain hoist for sale:

Lifting capacity: 1t
Testing loading: 1.25t
lifting speed: 0.26m/min 0.09m/min
Min distance between two hooks mm: 300
Lifting height: 3m
Motor power: 0.5kw
Power voltage: 380V 50HZ
Dead weight: 42Kg
lift 1 more meter increase weight: 0.82Kg

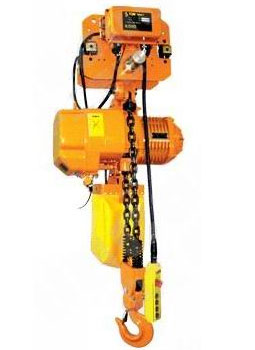

HSY series 1 ton electric chain hoist for sale:

Lifting capacity: 1t
Lift height m: 3-9m
Lift speed（M/Min）: 6.8
Lifting motor Power kw: 1.5
Lifting motor Rotation r/min: 1440
Lifting motor phase: 3
Lifting motor voltage（V）: 380/ 220
Lifting motor Frequency hz: 50/60
H steel rail mm: 75- 125

DHT series 1 ton electric chain hoist for sale:

lift capacity T: 1t
Testing loading T: 1.5Gn
Motor power kw: 0.3
Power voltage: 380V 　　　　　50HZ
Lift speed　m/min: 0.46
Min. Distance between hooks H 　mm: 270
Lift chain quantity: 1
Lift height　m: 2.5
Lift chain diameter　mm: 6
Net weight kg: 26
Gross weight kg: 28
lift 1 more meter increase weight kg: 0.835

Comparison DHS series, TCH series, DHP series, HSY series, and DHT series electric chain hoists:

Common features:

All of them are electric chain hoists that can lift and transport goods.
They use an electric motor to drive the chain for lifting, with a certain lifting speed and load capacity.
They all have certain safety protection functions, such as overload protection and emergency stop buttons, to ensure the safety of operators.
They are all made of high-strength alloy steel, with high durability and load capacity.

Differences:

The DHS series, DHP series, and DHT series are suitable for heavy-duty applications, with high load capacity and sturdy design. They are suitable for use in factories, warehouses, and construction sites.
The TCH series is suitable for light to medium-duty applications, with a lightweight design and low-noise operation. It is suitable for small workshops, garages, and other light lifting applications.
The HSY series is suitable for medium to heavy-duty applications, with a compact design and high-speed lifting. It is suitable for use in factories, warehouses, and construction sites.

1 ton electric chain hoist price:

The 1 ton electric chain hoist price can vary depending on several factors, such as the brand, model, and features. Generally speaking, a basic model of a 1 ton electric chain hoist can cost anywhere from $500 to $3000 USD. However, more advanced models with additional features such as wireless remote control or higher lifting speeds can cost more.

1. DHS Series 1 Ton Electric Chain Hoist Price:
Estimated Price: $500 to $2,500 USD

2. TCH Series 1 Ton Electric Chain Hoist Price:
Estimated Price: $700 to $3,000 USD

3. DHP Series 1 Ton Electric Chain Hoist Price:
Estimated Price: $500 to $2,500 USD

4. HSY Series 1 Ton Electric Chain Hoist Price:
Estimated Price: $600 to $2,800 USD

5. DHT Series 1 Ton Electric Chain Hoist Price:
Estimated Price: $800 to $3,000 USD

These are approximate price ranges, and actual prices may vary. It's important to note that 1 ton electric chain hoist price can be influenced by various factors such as the supplier, additional features, and any special requirements. For the most accurate and up-to-date pricing, please contacting specific suppliers or manufacturers directly.

How to choose the electric chain hoist that suits you:

Lifting requirements and application scope: Select the appropriate carrying capacity and height according to factors such as the weight, size, shape, quantity, and lifting height of the items to be lifted.
Carrying capacity: Choose an electric chain hoist with sufficient carrying capacity according to the weight of the items to be lifted.
Lifting speed: Select an electric chain hoist with a suitable lifting speed according to the work requirements to improve work efficiency.
Durability: Choose an electric chain hoist made of high-strength alloy steel with high durability to ensure long-term stable operation of the equipment.
Ease of operation: Choose an electric chain hoist that is easy to operate and has simple controls to improve work efficiency and the safety of operators.
Safety protection functions: Choose an electric chain hoist with safety protection functions such as overload protection, limit protection, and emergency stop buttons to ensure the safety of operators.

1 ton electric chain hoist for sale application:

The 1 ton electric chain hoist has a wide range of applications due to its compact structure, light weight, and reliable performance. It can be used in various lifting operations in factories, warehouses, docks, construction sites, and other places.

Lifting heavy machinery and equipment in factories and workshops
Loading and unloading goods in warehouses and logistics centers
Lifting and moving materials in construction sites
Lifting and positioning parts during assembly and maintenance work
Lifting and lowering boats and other watercraft in marinas

1 ton electric chain hoist for sale advantage:

High efficiency: The electric motor provides fast and efficient lifting, which helps to increase productivity and reduce labor costs.
Compact size and lightweight: The compact size and lightweight design of the hoist make it easy to transport and maneuver in tight spaces.
Easy to operate: The hoist is easy to operate, and the controls are intuitive, which reduces the risk of operator error and increases safety.
High reliability: The hoist is designed to be durable and reliable, with high-quality components and materials that can withstand heavy use over time.
Versatility: The hoist can be used for a wide range of lifting applications, making it a versatile tool for various industries.
Safety features: The hoist is equipped with various safety features, such as overload protection and emergency stop buttons, which help to ensure safe operation.

1 ton electric chain hoist maintenance:

Regular maintenance of a 1 ton electric chain hoist is essential to ensure its safe and reliable operation over time. Here are some tips for maintaining a 1 ton electric hoist:

Inspect the hoist regularly: Check the hoist for any signs of wear or damage, such as cracks, rust, or frayed wires. If any issues are found, they should be addressed immediately.
Lubricate the hoist: Apply lubricant to the chain, gears, and other moving parts of the hoist to reduce friction and wear.
Check the brake system: The brake system is an important safety feature of the hoist, so it should be checked regularly to ensure it's functioning properly.
Test the load capacity: Regularly test the hoist's load capacity to ensure it's lifting within its rated capacity.
Keep the hoist clean: Regularly clean the hoist to remove any dirt or debris that could cause damage or interfere with its operation.
Follow manufacturer's instructions: Always follow the manufacturer's instructions for maintenance and operation of the hoist.

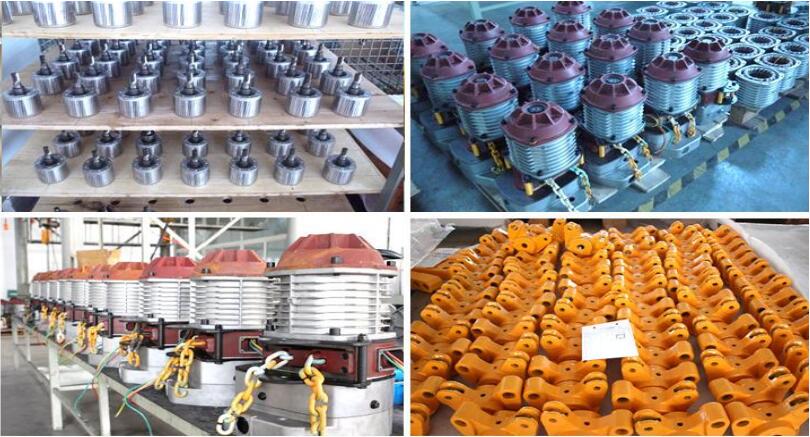

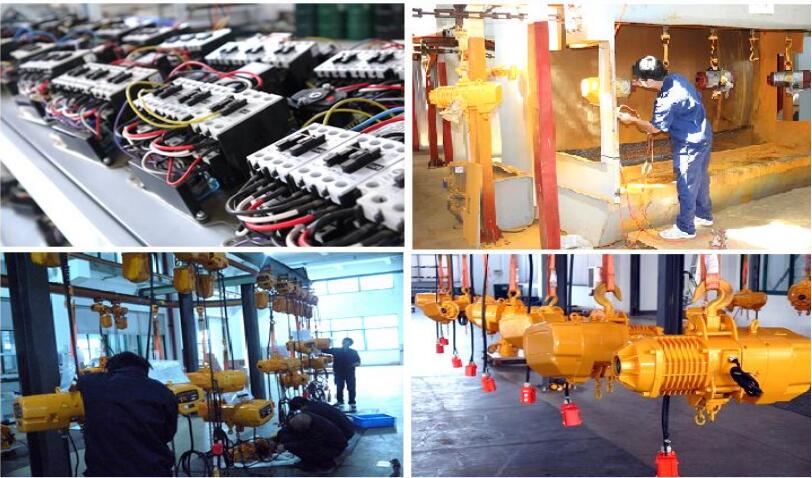

Electric hoist processing:

electric hoist processing involves several steps that require precision, attention to detail, and quality control to manufacture a high-quality and reliable lifting equipment.
