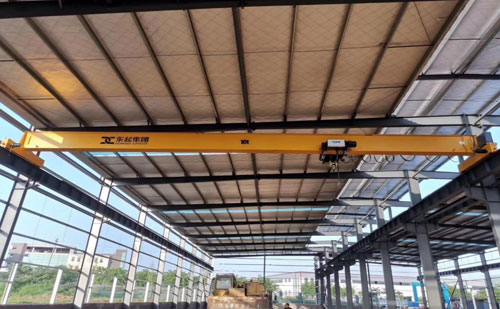

Specifications and Configurations of 5 Ton 20m and H-4.5m European Type Overhead Crane for Sale to Pakistan

Technical specifications of the 5 Ton Overhead Crane of European type to Pakistan:

Number	European type overhead crane
Lifting capacity	ton	5
Lifting height	m	4.5
Span	m	20
Hoist travel speed	m/min	2-20 (Frequency Conversion Control)
Crane travel speed		2-20 (Frequency Conversion Control)
Hoisting speed		0.8-5.0(Frequency conversion control)
Working classification	/	FEM 2M (ISO A5)
Power supply	V/Hz/Fase	220/60/3
Hoist travel power	KW	0.45
Traveling power of crane		0.75*2
Lifting power		4.9
Total power		6.85
Max. wheel load	KN	39.9
Total weight	ton	4.05
Protection class	/	IP54
Insulation grade	/	F
Ambient temperature	/	-10℃~+40℃
Country of origin	/	China
Recommended rail	/	P15

Configurations of the 5 Ton Overhead Crane from European type to Pakistan:

Main structure		Main beam	Welded box section beam, mainly use material Q235B strong carbon structural steel, easy to maintain. Three-layer painting.
Lifting mechanism		Electric hoist (European type)	Variable frequency speed regulation. Gearboxes, drum motors, motors Insult level F Protection class IP54
		Drum	Self-produced. Drums made of high quality seamless steel processed by CNC machine.
		Wire rope	Rope structure 8 × 26SW, steel core.
		Rope guide	High strength nylon material, installed on the winding drum to guide the wire rope, Avoid constant winding of steel wire and prolong the service life of the drum.
		Hook	Pivot on thrust bearing, safety latch.
		Hoist lifting reducer	Drum precision planetary gear drive Lightweight and compact. Well sealed, no oil leakage.
Motors		Crane travel motor	Maintenance-free. Insulation grade F. IP54 protection class. Electromagnetic disc type braking system.
		Hoist lifting motor	Frequency conversion hoist motor. Protection class IP54.
		End carriages (headers)	Q235B square hollow carbon steel structure, provides horizontal travel for crane with motors.
		Wheels	Installed on crane end carriages as driving wheels, high carbon steel material. Vacuum casting by our group, Intermedium cooling by high technical machinery, anti-rust painting.
Electricians		Electrical cabinet and contactors	Brand CHINT, best Chinese brand, ABB Contactors IP54 protection class
		Festoon cable	Power supply for trolley, C type cable track, safe and reliable
		Remote control	Safe and reliable.
		Frequency converter	Inovance brand, Chinese famous brand. Control the lift and travel motor, change the motor speed.
		Aviation plug	Easy to connect to install
Protection system		Lifting limit switches	For lifting protection, prevent the hook from hitting the hoist
		Travel limit switches	For long travel, protect the hoist before it hits the object
		Automatic tracking recorder	Displays lifting weight and records crane operating hours. Records crane overload times, providing protection and alarms. Logging of hoist motor start times. Provide alarms and hoist motor overheat protection.
		Buffer	Plourethane material, used for anti-collision.

Safety Features of  5 Ton European Type Overhead Crane:

A 5 ton european type overhead crane is typically designed with advanced safety features to ensure reliable operation, prevent accidents, and protect both the operators and the equipment. Here are the key safety features commonly found in these european type overhead crane:

• Weight Limit Sensors: The 5 ton european type overhead crane is equipped with load limiters to prevent the overhead crane from lifting loads beyond its rated capacity. This ensures the european type overhead crane operates within safe limits and prevents damage to both the overhead crane and the lifted load.
• Overload Warning System: If the 5 ton european type overhead crane exceeds its capacity, the system will issue an audible or visual warning to the operator, or automatically stop further lifting.
• E-Stop Button: An emergency stop button is usually located on the crane’s control panel and at key access points to allow operators or personnel to stop overhead crane operation in an emergency.
• Automatic Cut-off: If any dangerous situation is detected, such as sudden equipment malfunction or failure of the electrical system, the 5 ton european type overhead crane will automatically cut power to prevent further risk.
• Limit Switches: These are used to prevent the european type overhead crane’s hook or trolley from colliding with other structures or parts of the overhead crane, especially when reaching the end of its travel.
• Bumper or Buffer Systems: The 5 ton european type overhead crane may have bumpers or buffer mechanisms installed at the end of its travel to absorb impact and protect the european type overhead crane structure from damage.
• Hoisting Brake: The hoisting motor is equipped with a mechanical brake that holds the load securely when the overhead crane is not in operation.
• Trolley and Travel Brakes: Brakes on the trolley and bridge prevent unwanted movement when the overhead crane is stationary.
• High-Quality Steel Frame: The 5 ton european type overhead crane's structural components are designed and fabricated from high-strength steel to provide durability and minimize the risk of structural failure.

Reduce Operational Costs with the 5 Ton European Type Overhead Crane:

Reducing operational costs is a key objective for businesses, especially those that rely on heavy machinery like overhead cranes. The 5 ton european type overhead crane is designed with advanced features that can significantly improve operational efficiency and reduce long-term costs. Here are some strategies to achieve cost reduction:

• Durability and Reliability: 5 ton european type overhead crane are known for their high-quality engineering, which typically translates to longer lifespans and fewer breakdowns. A overhead crane that requires fewer repairs will lower both direct maintenance costs and the indirect costs associated with downtime.
• Advanced Materials and Coatings: Many 5 ton european type overhead crane feature advanced materials and coatings that resist wear, corrosion, and fatigue. This extends the overhead crane's life and reduces the frequency and cost of repairs and replacements.
• Precise Control Systems: 5 ton european type overhead crane often feature sophisticated control systems that allow for smoother operation and more precise load handling. By reducing the chances of mishandling or overloading, you can minimize the risk of damage to the overhead crane and the goods being lifted.
• Load Sensing: 5 ton european type overhead crane with load sensing capabilities ensure that the correct lifting capacity is always used, which can prevent overloading, thus extending the lifespan of the overhead crane and reducing repair costs.
• Faster Operation: With advanced hoisting, trolley, and bridge speeds, these 5 ton european type overhead crane can move loads more quickly, improving throughput and reducing operational time.
• Advanced Safety Features: 5 ton european type overhead crane are often equipped with enhanced safety features such as overload protection, automatic shutoff mechanisms, and anti-collision systems. These features reduce the risk of accidents and damage, which can result in costly insurance claims or expensive repairs.
• Ergonomic Design: The operator cabins and controls are designed to improve comfort and reduce operator fatigue, which leads to fewer mistakes and more efficient operation.
• Reduced Total Cost of Ownership (TCO): Though the upfront cost may be higher compared to some other types of overhead crane, the reduced operational and maintenance costs over time lead to a lower total cost of ownership.
• Customizability: 5 ton european type overhead crane are often customizable to suit specific operational needs.

Packing and Delivery of 5 Ton European Type Overhead Crane to Pakistan:

Define Your Requirements of 5 ton european overhead crane:

Before purchasing a 5 ton european overhead crane, you need to clearly understand your operational needs. Consider the following:

Load Capacity

• Rated Capacity: A 5 ton european overhead crane is designed to lift up to 5,000 kg (or 11,000 lbs). Ensure that the overhead crane meets or exceeds your typical load lifting requirements.
• Maximum Load: Be sure the 5 ton european overhead crane's maximum rated load is adequate for your heaviest lifting tasks. Consider any future expansions or potential increases in load capacity.

Lift Height

• Lifting Height: Determine the maximum height the overhead crane needs to lift loads to. European overhead cranes come with customizable lifting heights, which can be adjusted based on your facility's requirements.
• Headroom: Assess the headroom (the vertical distance from the floor to the crane's bridge). A higher headroom gives more space for lifting, but this may also require a taller building.

Span (Bridge Length)

• Span refers to the width of the 5 ton european overhead crane’s bridge, or how far the overhead crane will cover across your facility. A 5-ton European overhead crane typically spans anywhere from 10 to 30 meters (depending on the model), but this should be aligned with the layout of your facility.
• Track Length: Consider the total track length required for the overhead crane to travel across the work area.

Frequency of Use

• Duty Cycle: Determine how often the 5 ton european overhead crane will be in use, and for how long. This will affect the type of crane you should choose in terms of motor power, hoisting system, and overall durability.
• Heavy Duty vs Light Duty: A heavy-duty overhead crane will be built to handle more frequent use and heavier loads, while a light-duty overhead crane is sufficient for less demanding applications.

Why Choose a 5 ton european overhead crane:

5 ton european overhead crane with European design and durability is an excellent investment for companies looking for:

• High reliability and longevity
• Precision engineering and safety features
• Cost efficiency through energy savings and easy maintenance
• Customization for specific operational needs

For companies that value performance, durability, and safety, investing in a 5 ton european overhead crane that combines European design principles with robust construction is a smart decision that pays off in both the short and long term.

Key Applications of 5 Ton European Type Overhead Crane in Pakistan:

• Construction Industry: The real estate and infrastructure sectors in Pakistan are booming, with large-scale projects, including commercial buildings, bridges, and transport infrastructure, being executed in major cities like Lahore, Karachi, and Islamabad. A 5 ton overhead crane can play a critical role in lifting and positioning heavy construction materials such as steel beams, precast concrete slabs, and large equipment.
• Manufacturing Sector: As Pakistan moves toward increasing its manufacturing capacity, especially in sectors like textiles, cement, and automotive. The European-type 5 ton overhead crane are ideal for these industries due to their superior design.
• Energy and Power Plants: With a focus on improving energy generation, especially in thermal and hydroelectric power plants in Pakistan, the 5 ton overhead crane can be used for the handling of heavy components like turbines, generators, and transformers.
• Steel and Metal Industry: Overhead crane are used for moving raw materials like steel, as well as finished goods in metalworking plants. With the growth of the Pakistan steel industry, 5 ton overhead crane will be crucial for streamlining production lines.
• Port and Logistics: In the Pakistan logistics sector, particularly in port facilities such as those in Karachi, overhead cranes are used to load and unload heavy cargo. The 5 ton overhead crane' higher load capacities and precision in operations make them suitable for handling goods in a controlled and efficient manner.
• Mining and Minerals: Pakistan is rich in natural resources, including coal, salt, and various minerals. The mining industry can benefit from using 5 ton overhead cranes for loading and unloading minerals.
