Specifications and Configurations of 10 Ton 12m and H-5m European Type Overhead Crane for Sale to Uzbekistan

Technical specifications of the 10 Ton Overhead Crane of European type to Uzbekistan:

Number	European type overhead crane
Lifting capacity	ton	10
Lifting height	m	5
Span	m	12
Hoist travel speed	m/min	2-20 (Frequency Conversion Control)
Crane travel speed		2-20 (Frequency Conversion Control)
Hoisting speed		0.8-5.0(Frequency conversion control)
Working classification	/	FEM 2M (ISO A5)
Power supply	V/Hz/Fase	220/60/3
Hoist travel power	KW	0.96
Traveling power of crane		0.75*2
Lifting power		9.5
Total power		11.96
Max. wheel load	KN	66.3
Total weight	ton	3.54
Protection class	/	IP54
Insulation grade	/	F
Ambient temperature	/	-10℃~+40℃
Country of origin	/	China

Configurations of the 10 Ton Overhead Crane from European type to Uzbekistan:

Main structure		Main beam	Welded box section beam, mainly use material Q235B strong carbon structural steel, easy to maintain. Three-layer painting.
Lifting mechanism		Electric hoist (European type)	Variable frequency speed regulation. Gearboxes, drum motors, motors Insult level F Protection class IP54
		Drum	Self-produced. Drums made of high quality seamless steel processed by CNC machine.
		Wire rope	Rope structure 8 × 26SW, steel core.
		Rope guide	High strength nylon material, installed on the winding drum to guide the wire rope, Avoid constant winding of steel wire and prolong the service life of the drum.
		Hook	Pivot on thrust bearing, safety latch.
		Hoist lifting reducer	Drum precision planetary gear drive Lightweight and compact. Well sealed, no oil leakage.
Motors		Crane travel motor	Maintenance-free. Insulation grade F. IP54 protection class. Electromagnetic disc type braking system.
		Hoist lifting motor	Frequency conversion hoist motor. Protection class IP54.
		End carriages (headers)	Q235B square hollow carbon steel structure, provides horizontal travel for crane with motors.
		Wheels	Installed on crane end carriages as driving wheels, high carbon steel material. Vacuum casting by our group, Intermedium cooling by high technical machinery, anti-rust painting.
Electricians		Electrical cabinet and contactors	Brand CHINT, best Chinese brand, ABB Contactors IP54 protection class
		Festoon cable	Power supply for trolley, C type cable track, safe and reliable
		Remote control	Safe and reliable.
		Frequency converter	Inovance brand, Chinese famous brand. Control the lift and travel motor, change the motor speed.
		Aviation plug	Easy to connect to install
Protection system		Lifting limit switches	For lifting protection, prevent the hook from hitting the hoist
		Travel limit switches	For long travel, protect the hoist before it hits the object
		Automatic tracking recorder	Displays lifting weight and records crane operating hours. Records crane overload times, providing protection and alarms. Logging of hoist motor start times. Provide alarms and hoist motor overheat protection.
		Buffer	Plourethane material, used for anti-collision.

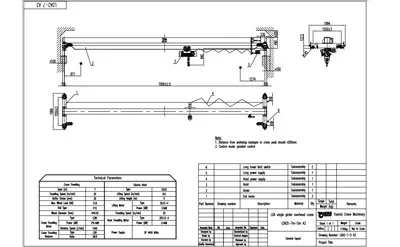

Drawing of European type 10 ton overhead crane to Uzbekistan:

Packing and delivery of 10 tons European type overhead crane to Uzbekistan:

Uzbekistan’s Economic Context:

Uzbekistan, located in Central Asia, has been experiencing significant economic growth and industrial development in recent years. As the country modernizes its infrastructure and diversifies its economy, the need for advanced machinery and efficient industrial equipment, such as the 10 ton european type overhead crane, becomes increasingly vital in boosting productivity and ensuring safe and reliable operations across multiple sectors.

The 10 ton European type overhead cranes are renowned for their advanced engineering, featuring better load control, higher lifting speeds, and energy efficiency compared to older crane models. These overhead cranes are equipped with intelligent control systems, which optimize the overhead crane's movement and prevent overloading. This efficiency translates to reduced energy consumption, lower operational costs, and improved safety.

The 10 ton european type overhead crane, known for its robust design and precision, is ideally suited for use in a variety of industries crucial to Uzbekistan's economic landscape.

Application of the 10 Ton European Type Overhead Crane in Uzbekistan

1. Mining and Metallurgy: Uzbekistan is one of the world’s largest producers of gold, copper, and uranium. The 10 ton european type overhead crane is indispensable in mining and metallurgy operations, where heavy lifting, material handling, and the transport of raw materials are routine tasks. Its high capacity and reliability make it an ideal choice for moving large ores, equipment, and finished metal products in smelters and refineries.
2. Construction and Infrastructure: With a rapid expansion of the construction sector, particularly in urbanization, infrastructure projects, and residential developments, there is an increasing demand for lifting and moving large, heavy components, such as beams, steel structures, and pre-cast concrete panels. The 10 ton european type overhead crane is crucial in construction yards, allowing for efficient handling of materials and speeding up the construction process.
3. Energy and Utilities: As Uzbekistan continues to invest in its energy sector, including oil and gas production, as well as renewable energy sources, the 10 ton european type overhead crane is vital in maintenance and operations of power plants, substations, and other energy infrastructure. It facilitates the lifting and positioning of heavy machinery, turbines, and transformers, enabling quicker installation and repair processes.
4. Transportation and Logistics: Uzbekistan’s strategic location as a transport hub connecting Central Asia with Europe, Russia, and China is driving investment in its logistics infrastructure. The 10 ton european type overhead crane is extensively used in ports, warehouses, and distribution centers to streamline cargo handling. Whether moving containers in ports or heavy goods in warehouses, these cranes contribute to smoother logistics operations.
