1 Ton Portable Gantry Crane

A 1 ton portable gantry crane is a type of lifting equipment designed to lift and move loads weighing up to one ton in various industrial and commercial settings. 1 ton portable gantry crane consists of a horizontal beam supported by two upright beams, forming a gantry shape.

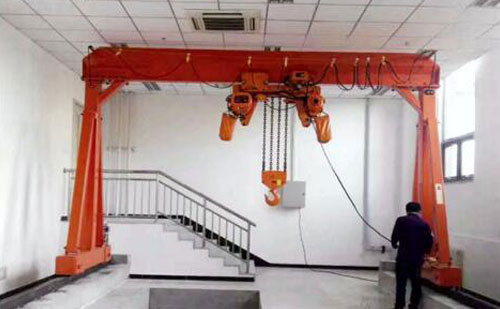

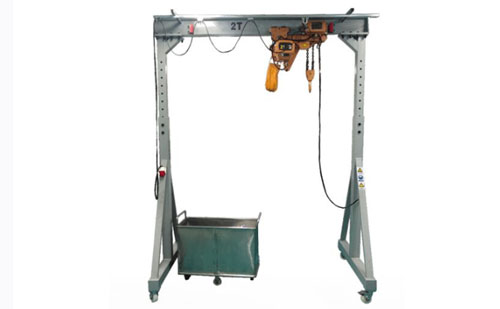

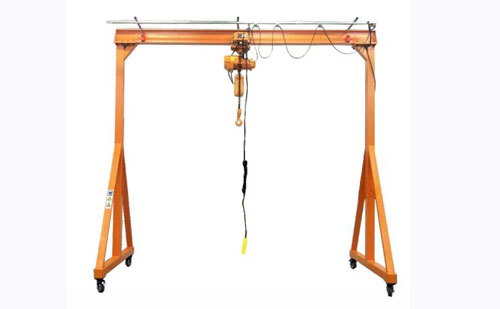

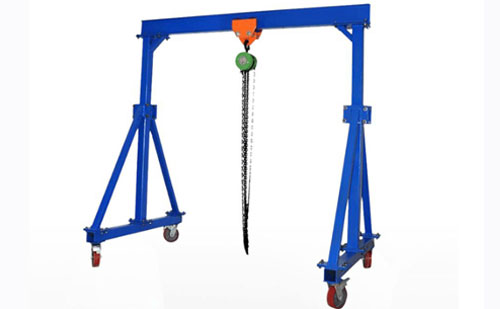

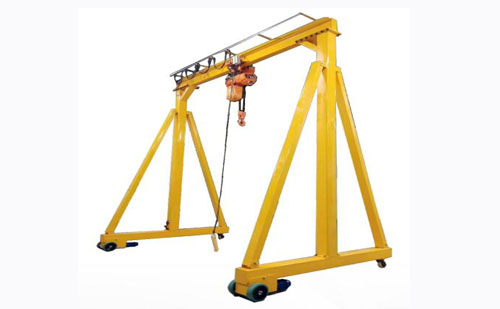

1 Ton Portable Gantry Crane with Electric Hoist for sale:

Features of 1 Ton Portable Gantry Crane:

1. Capacity: 1 ton portable gantry cranes are designed to lift loads up to one ton.
2. Portability: 1 ton portable gantry crane are designed to be easily moved and assembled by a small team without the need for specialized equipment.

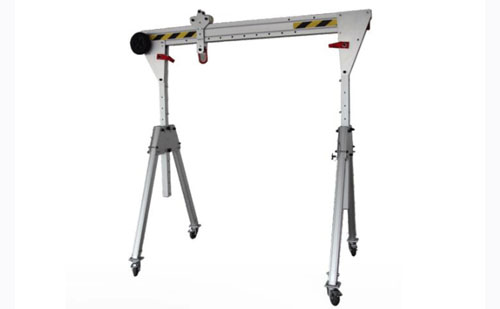

3. Adjustability: Many 1 ton portable gantry cranes come with adjustable height and span options to accommodate different lifting needs.
4. Durability: Constructed from sturdy materials such as steel, 1 ton portable gantry crane are built to withstand heavy use in industrial environments.
5. Safety Features: Most models include safety features such as locking mechanisms and overload protection to prevent accidents.

Advantages of 1 Ton Portable Gantry Crane:

1. Portability: Easily moved and set up in different locations as needed.
2. Cost-Effective: Generally more affordable than fixed overhead crane systems.
3. Versatility: Can be used for a wide range of lifting tasks.
4. Space-Saving: Takes up less space compared to fixed overhead cranes.

Applications of 1 Ton Portable Gantry Crane:

The versatility and portability of 1-ton portable gantry cranes make them suitable for a wide range of applications across various industries. Some common applications include:

• Workshops and Manufacturing: Lifting and moving heavy machinery and equipment during assembly, maintenance, or repair tasks. Handling materials and components in fabrication and production processes.
• Warehousing and Logistics: Loading and unloading goods from trucks and containers. Moving heavy items within warehouses or distribution centers. Organizing storage spaces by positioning pallets or crates.
• Maintenance and Repair: Lifting and positioning heavy equipment or machinery for inspection, maintenance, or repair work. Assisting in the installation or removal of components in industrial settings.
• Events and Exhibitions: Setting up stages, lighting rigs, and audio-visual equipment. Moving heavy props or displays during exhibitions or trade shows.
• Outdoor and Field Operations: Supporting lifting tasks in outdoor environments where fixed overhead cranes are not available or practical.

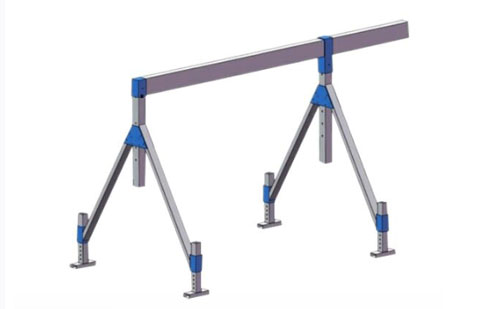

 Detailed assembly guide for a 1 ton portable gantry crane:

• Organize Components: Lay out all components in the assembly area. Ensure all parts are accounted for and inspect them for any damage.
• Position the Legs: Place the two upright legs (supports) parallel to each other at the desired location. Ensure the legs are spaced apart according to the crane's specifications.
• Attach Cross Braces: Insert the cross braces between the legs at the designated positions. Align the holes on the cross braces with the corresponding holes on the legs.
• Secure Cross Braces: Use the provided bolts, nuts, and washers to secure the cross braces to the legs. Tighten the fasteners securely using appropriate tools.
• Install Cross Beam (Bridge): Lift the cross beam (bridge) and position it horizontally between the assembled legs. Ensure the beam is centered and level.
• Secure Cross Beam: Align the bolt holes on the ends of the cross beam with the holes on the legs. Insert bolts, nuts, and washers through the holes and tighten them securely.
• Attach Wheels or Casters (if applicable): If the crane has wheels or casters, attach them to the bottom of the legs according to the manufacturer's instructions. Ensure the wheels are securely fastened and can move freely.
• Install Hoist or Beam Trolley: Attach the hoist or beam trolley onto the cross beam according to the manufacturer's instructions. Ensure the hoist or trolley is securely attached and aligned with the center of the cross beam.
• Perform Final Checks: Double-check all bolts, nuts, and fasteners to ensure they are tightened securely. Verify that the crane is stable, level, and properly aligned. Test the movement of the hoist or trolley along the cross beam.
• Test Run: Before using the crane to lift any loads, perform a test run to ensure all components are functioning correctly. Test the movement of the hoist or trolley and ensure smooth operation.
