Price of 5 Ton 6M Electric Chain Hoist for Sale to Pakistan

Price of 5 Ton 6M Electric Chain Hoist for Sale to Pakistan:

Technical Specifications and Dimensions of 5 Ton Electric Chain Hoist to Pakistan:

Item	Electric Chain hoist
Lifting capacity	5 ton
Lifting height	6m
Control	Pendent cable
Power supply	380v,50hz,3p
Lifting speed	2.7m/min
Traveling speed	11m/min
Hoisting power	3kw
Traveling power	0.75kw
Working class	M3
Control voltage	42v
Chain dia	11.2mm
Motor rpm	1440r/min
Flange width	179-305mm
Weight	255kg
Ambient temperature	-20 to +50 degree
Protection	Overload limit, limit switch,strong brake system etc..
Origin of country	China

Design Drawing of 5 Tons Electric Chain Hoist to Pakistan:

5 Ton Electric Chain Hoist Configurations of Parts to Pakistan:

Motor shell		It is made of light aluminum alloy shell, light but hard. The cooling fin is especially designed to ensure quick heat dissipation with the rate up to 40% and continuous service. The integral enclosed structure is applicable to places like chemical plant and electroplate factory.
Motor		Special designed for the electric chain hoist. Maintenance free. Insulation grade F. Protection class IP54. Side magnetic braking system inside
Gear box		Forged medium carbon steel, good toughness, strong impact resistance& bearing capacity, made by generating method, gear grinding processing, high precision degree
Electric Trolley		High strength low alloy steel structure, with electric motor and high-wearing feature wheels, compact and easy to install
Chain		FEC G80 The chain shall adopt the imported ultra-heat treatable aluminum alloy chain. It can be safety used in power environments such as rain, sea water and chemicals
Chain bag		High wear resistance nylon material, store the lifting chain and prevent the chain from getting entangled with the main card or the chain when the chain is free to slide
Hook		It is hot forging with perfect strength that is hard to break. The operation safety of the lower hook is ensured by its 360 degrees rotation and safety flap
Electrics		CHINT brand, China famous brand, Inverse phase sequence protecting device
Overload Limit switch		The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety
Pendent control		Button: Up and down; left and right; front and back; start and stop; emergency;Safe and reliable;High working efficiency

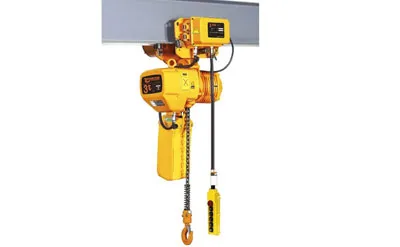

5 Ton Electric Chain Hoist:

Detail of Electric Chain Hoist for Feference:

 Advantages of 5 Ton Electric Chain Hoist:

• High Load Capacity: With a 5-ton (10,000 lbs) lifting capacity, this electric chain hoist can handle heavy machinery, large components, and other substantial loads, improving efficiency and reducing manual labor risks.
• Consistent Performance: 5 ton electric chain hoist provide smooth and consistent lifting and lowering speeds. This ensures better control, precision, and repeatability—key in operations requiring high accuracy.
• Enhanced Safety: Modern 5 ton electric chain hoist come with advanced safety features like overload protection, emergency stop, thermal motor protection, and limit switches, reducing the risk of accidents and equipment damage.
• Increased Productivity: Electric operation allows for faster lifting cycles compared to manual or pneumatic hoists. This significantly boosts productivity in high-demand environments.
• Durability & Low Maintenance: Constructed with robust materials and sealed components, these 5 ton electric chain hoist are designed to withstand harsh industrial environments. Their relatively low maintenance requirements reduce downtime and operating costs.
• Space Efficiency: Electric chain hoists are compact and can be installed in tight spaces. 5 ton electric chain hoist are also compatible with both fixed and trolley-mounted systems, offering flexible installation options.
• Ease of Use: User-friendly controls (often via pendant or wireless remote) make operation simple and safe, even for less-experienced personnel.
• Energy Efficient: Compared to pneumatic hoists, 5 ton electric chain hoist generally consume less energy, making them more cost-effective in the long term.

How to Choose the Right 5 Ton Electric Chain Hoist:

Selecting the right 5 ton electric chain hoist involves more than just weight capacity, it's about ensuring safety, efficiency, and long-term value. Here’s a quick guide to help you make the right choice:

• Understand Your Application Needs: Consider the environment (indoor/outdoor, dusty, explosive, etc.), duty cycle (how often it’ll run), and lifting height. These factors influence the 5 ton electric chain hoist’s design and durability requirements.
• Lifting Height & Speed: Ensure the 5 ton electric chain hoist supports your required lift height (distance from hook to hook). Choose a lifting speed that matches your workflow—faster speeds for high-volume use, slower for precision work.
• Power Supply Compatibility: Check voltage and phase requirements (e.g., 220V or 460V, single or three-phase) to ensure compatibility with your facility’s electrical system.
• Mounting Options: Decide between a hook-mounted 5 ton electric chain hoist (easy to relocate), trolley-mounted (for horizontal movement), or stationary mount. Choose based on whether you need fixed lifting or mobility.
• Safety Features: Look for features like overload protection, emergency stop, upper/lower limit switches, and thermal motor protection to minimize operational risks.
• Control Type: Choose between pendant control (wired) or wireless remote. Remote controls offer flexibility and safer distance operation, especially in hazardous environments.

Safety Operating Specifications for 5 Ton Electric Chain Hoist:

Operating a 5 ton electric chain hoist safely requires adherence to key safety guidelines and operational best practices. Below are essential safety specifications to ensure proper usage, protect personnel, and extend equipment life:

• Load Capacity Compliance: Never exceed the 5-ton (10,000 lbs) rated capacity. Always verify the weight of the load before lifting.
• Pre-Operation Inspection: Inspect the 5 ton electric chain hoist daily before use: check the chain, hook, limit switches, brake function, and controls. Look for wear, deformation, cracks, or corrosion.
• Proper Load Hooking: Ensure the load is centered and securely attached to the hook. Never tip-load, side-load, or sling the hook improperly.
• Use in Approved Conditions: Operate the 5 ton electric chain hoist in suitable environments—free from explosive gases, extreme temperatures, or high moisture unless rated for such conditions. Avoid outdoor use in rain or snow unless the 5 ton electric chain hoist is weatherproof.
• Operator Training: Only trained and authorized personnel should operate the 5 ton electric chain hoist. Operators must understand control functions, safety features, and emergency stop procedures.
• Avoid Shock Loading: Do not jerk the load. Always lift and lower smoothly to avoid shock loading, which can stress the 5 ton electric chain hoist mechanism.
• Limit Switches & Emergency Stop: Ensure upper and lower limit switches are functional to prevent over-travel. Know the location and use of emergency stop features.

5 Ton Electric Chain Hoist Processing:

5 Ton electric chain hoist processing involves several steps that require precision, attention to detail and quality control to manufacture reliable, high quality lifting equipment.

Design - Material selection - Cutting and forming - Assembly - Wiring and electrical components - Testing.
