5 Ton Overhead Crane
5 Ton 32.5 M Low Headroom Single Girder Overhead Crane for Sale to Philippines
Lifting Capacity: 5 ton
Span: 32.5 m
Lifting Height: 7 m
Working Class: A4
Note: We can design and manufacture the crane according your requirments and working conditions.
5 Ton 32.5 M Low Headroom Single Girder Overhead Crane for Sale to Philippines:
Dongqi Crane reputable overhead crane manufacturer received an inquiry from a customer in the Philippines for a 5 ton single girder overhead crane.
5 Ton Single Girder Overhead Crane Specifications:
- Capacity: 5 ton
- Lifting span: 32.5 meters
- Lifting height: 7 meters
- Quantity: 1 set
The Philippines customer initially expressed communicated that their plant was still under construction, lacking even the basic plant drawings. This posed a challenge for both parties as precise dimensions were crucial for the single girder overhead crane's design and installation.
Challenges Faced:
- Lack of plant drawings and incomplete construction status delayed the clarification of dimension details.
- Ensuring safety with a significant span length of 32.5 meters required modifications to the 5 ton single girder overhead crane design.
- Meeting the expected lifting height necessitated the recommendation of a specialized HD model low headroom hoist.
- Ensuring the 5 ton single girder overhead crane could be delivered within the constraints of a 40-foot container posed logistical challenges.
Solution:
- Collaborative Communication: Despite initial setbacks, both parties engaged in continuous communication via email, ensuring clarity on all requirements and dimensions.

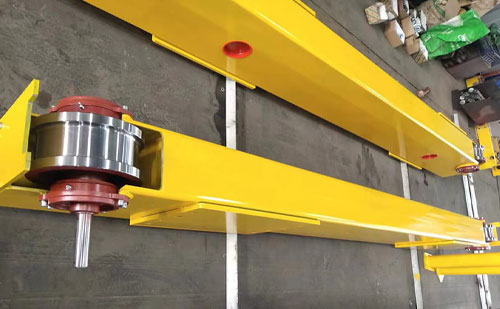

- Customized Design: To address safety concerns, our engineers modified the 5 ton single girder overhead crane design, incorporating a connection between the main bridge girder and end carriages to withstand the span length of 32.5 meters.
- Specialized Hoist Recommendation: Recognizing the need to reach the desired lifting height, the manufacturer suggested an HD model low headroom hoist, ensuring optimal performance.
- Innovative Design Modification: In consultation with the Philippines customer, the manufacturer's engineers redesigned the main bridge girder into three pieces connected by flange and strengthened bolts. This innovative modification allowed the crane to be conveniently delivered within a 40-foot container.
Outcome:

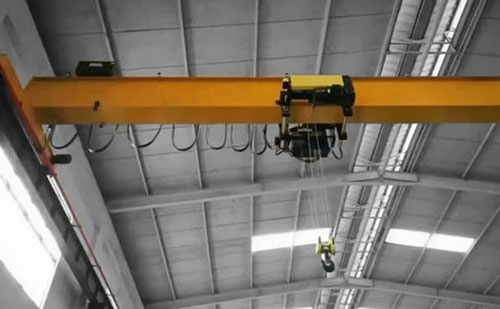

- Efficient Crane Operation: Upon successful assembly, the 5 ton low headroom overhead crane seamlessly integrated into the Philippines customer's plant, facilitating smooth material handling operations.
- Customer Satisfaction: The Philippines customer expressed satisfaction with the 5 ton single girder overhead crane performance and appreciated the manufacturer's adaptability in overcoming challenges during the design and installation process.
- Successful Collaboration: The transaction exemplified effective collaboration between the manufacturer and the customer, resulting in a tailored solution that met the customer's specific requirements and exceeded expectations.
