Price of 3 Ton 8 M 10M Portable Gantry Crane with Electric Chain Hoist for Sale to Uzbekistan

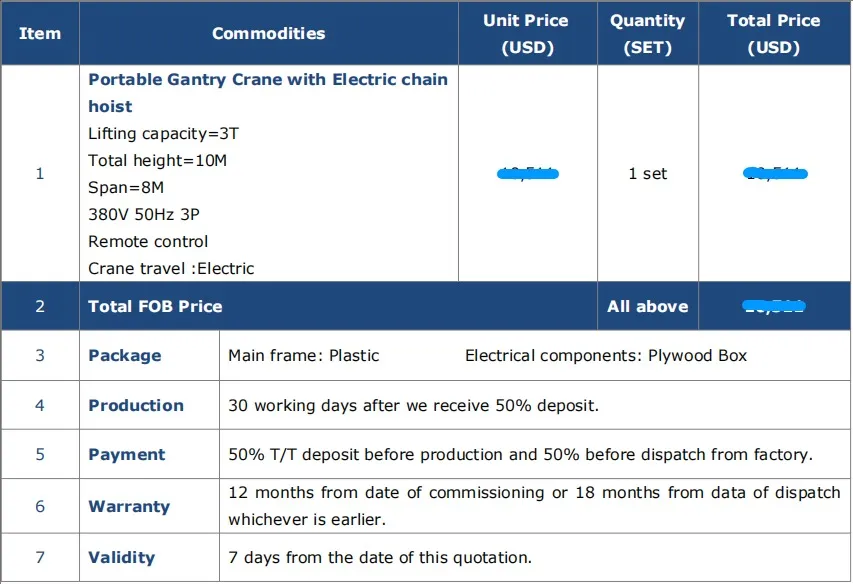

Price of 3 Ton 8 M 10M Portable Gantry Crane with Electric Chain Hoist for Sale to Uzbekistan:

Technical Specifications of 3 Ton 8 M 10M Portable Gantry Crane with Electric Chain Hoist for Sale to Uzbekistan:

Item		Portable Gantry Crane
Lifting capacity		t	3
Total height		m	10
width			8
Speed	Hoist traveling speed	m/min	11
	Crane traveling speed		8
	Lifting speed		5.4
Working class		/	A3
Power supply		V/Hz	380/50/3
Control voltage			36
Control method		/	Remote control
Hoist traveling power		KW	0.75
Hoist lifting power			1.5
Crane travelling power			2*0.75
Total power			3.75
Total weight		t	5.5
Protection class		/	F
Insulation class		/	IP54
Working temperature		/	-20℃ ~ +40℃

Design Drawing of 3 Ton 8m 10m Portable Gantry Crane for Sale to Uzbekistan:

Configuration Details of 3 Ton Portable Gantry Crane with Electric Chain Hoist for Sale to Uzbekistan:

Main structure		Main beam is H type Q235B carbon structural steel with seamless once forming technology more strong and elegant.
		Supporting leg is also Q235B carbon structural steel, it is connected to the main beam by high strength bolts, stable and easy to disassemble and install.
Wheel		Heavy duty motorized wheel, smooth to move, locking system included.
Lifting hoist		Electric chain hoist Protection class IP54
Hoist shell		It is made of light aluminum alloy shell, light but hard. The cooling fin is especially designed to ensure quick heat dissipation with the rate up to 40% and continuous service. The integral enclosed structure is applicable to places like chemical plant and electroplate factory.
Motor		Manufactured by Dedong Motor factory, Special designed for the electric chain hoist. Maintenance free. Insulation class F. Protection class IP55. Side magnetic breaking system inside
Electric trolley		High strength low alloy steel structure, with electric motor and high-wearing feature wheels, compact and easy to install
Chain		The chain shall adopt the imported ultra heat-treatable aluminum alloy chain. It can be safety used in power environments such as rain, sea water and chemicals
Chain bag		High wear resistance nylon material, store the lifting chain and prevent the chain from getting entangled with the main card or the chain when the chain is free to slide
Hook		It is hot forging with perfect strength that is hard to break. The operation safety of the lower hook is ensured by its 360 degrees rotation and safety flap
Electrics		Chint brand, China famous brand, Inverse phase sequence protecting device
Limit switch		The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety
Festoon cable		Supply power for the hoist, flexible, safe and relaible
Pendant Control		Button: Up and down; left and right; front and back; start and stop; emergency stop; Safe and reliable
Remote Control		Wireless radio frequency control

Different Types of Portable Gantry Crane with Electric Chain Hoist for Sale for Reference:

3 Ton Portable Gantry Crane Buying Guide:

• Lifting weight and safety factor: The nominal lifting capacity is 3 tons, and it is recommended to choose with a certain safety factor (1.25~1.5 times) to ensure safe use. Check whether 3 ton portable gantry crane has passed CE certification, ISO and other international certification standards.
• Structure material: Aluminum alloy 3 ton portable gantry crane lightweight, anticorrosive, suitable for outdoor or occasions requiring frequent movement. Carbon steel 3 ton portable gantry crane strong load-bearing capacity, lower cost, suitable for fixed places or heavy-duty working conditions.
• Adjustability: Whether 3 ton portable gantry crane supports height and span adjustment, so that it can be flexibly adapted to different sizes of work areas. Some models support folding or quick assembly for easy transportation and storage.
• Mobility: 3 ton portable gantry crane equipped with high-strength casters (with brakes) to ensure smooth movement on flat ground and fixed position. Consider whether the material of the wheels (polyurethane wheels, nylon wheels, etc.) is suitable for the type of work surface.
• Type of lifting equipment: 3 ton portable gantry crane can be matched with hand-operated hoist, electric hoist or pneumatic hoist, choose the right model according to the budget and work intensity. The electric model is recommended to choose the product with remote control function and safety limiter.

Installation and Use of 3 Ton Portable Gantry Crane:

Installation:

• Site Preparation: Choose a flat, stable surface free of obstructions. Ensure there's enough space for 3 ton portable gantry crane movement and load handling.
• Frame Setup: Lay out the main beam, uprights, and support legs. Attach side frames to the beam using bolts or quick-release pins.
• Casters: Mount the locking swivel casters on each leg for mobility and stability of 3 ton portable gantry crane.
• Secure Connections: Use proper torque settings to tighten bolts. Follow manufacturer instructions about 3 ton portable gantry crane closely.
• Inspection: Before use, check for structural of 3 ton portable gantry crane integrity, ensure all bolts are secure, and verify caster locks and beam clamps are functional.

Usage:

• Pre-Operation Check: Inspect the 3 ton portable gantry crane, hoist, and rigging gear. Confirm rated capacity (3 tons) is not exceeded. Lock casters before lifting.
• Lifting Procedure: Center the load under the beam of 3 ton portable gantry crane. Attach hoist hook securely to the load with proper slings. Lift slowly and steadily to avoid swinging.
• Movement: For repositioning, lower the load close to the ground. Unlock casters and push the crane manually.
• Safety: Keep clear of the load while lifting or moving. Do not use in high winds or uneven terrain. Always follow OSHA and manufacturer guidelines.
• Maintenance: Regularly inspect 3 ton portable gantry crane wear, lubricate moving parts, and replace damaged components as needed.

Advantages of 3 Ton Portable Gantry Crane:

• Mobility and Flexibility: 3 ton portable gantry crane can be moved easily within a workspace. This makes them ideal for multiple lifting locations or temporary workstations.
• Easy Installation: These 3 ton portable gantry crane are relatively simple to assemble and disassemble, often requiring no permanent foundation or heavy machinery, saving time and installation costs.
• High Load Capacity: With a 3 ton (6,000 lbs) capacity, they can lift and move heavy machinery, engines, and equipment safely and efficiently in workshops, warehouses, or construction sites.
• Cost-Effective: 3 ton portable gantry crane are more affordable than permanent cranes or forklifts, both in purchase and maintenance.
• Compact and Space-Saving: When not in use, 3 ton portable gantry crane can be disassembled or rolled out of the way, freeing up floor space.
• Versatility: Suitable for indoor and outdoor use, these 3 ton portable gantry crane work well across various industries—automotive, manufacturing, construction, and more.
• Adjustability: Many models of 3 ton portable gantry crane feature adjustable height and span, allowing customization based on the load size and working environment.
• Enhanced Safety: With proper use and safety features (like locking casters and secure lifting points), these 3 ton portable gantry crane reduce the risk of manual handling injuries and accidents.
• No Need for Building Modifications: Perfect for rented or temporary spaces where installing a permanent crane system is not feasible.

3 Ton Portable Gantry Crane Processing:

3 Ton Portable Gantry Crane Package and Delivery:

Portable Gantry Crane Certifications:

Application of 3 Ton Portable Gantry Crane in Uzbekistan:

Uzbekistan is experiencing steady economic growth driven by industrial expansion, infrastructure development, and increasing foreign investment. In this context, the 3 ton portable gantry crane is a practical and cost-effective solution, especially for small and medium-sized enterprises (SMEs) and developing industries.

1. Manufacturing and Workshops: Uzbekistan’s push toward industrialization has led to the growth of machine-building, automotive, and textile sectors. 3 ton portable gantry crane are ideal for lifting heavy parts and equipment in small factories or repair shops where permanent crane systems are too costly or impractical.
2. Construction Sites: With ongoing infrastructure and housing projects across Uzbekistan, the 3 ton portable gantry crane is useful for moving construction materials like steel beams, generators, and heavy tools—particularly in areas without established crane infrastructure.
3. Agriculture and Rural Enterprises: In rural areas, where agricultural machinery needs regular maintenance or repair, a 3 ton portable gantry crane offers a simple lifting solution without needing permanent installation—aligning well with Uzbekistan’s agricultural modernization goals.
4. Warehousing and Logistics: As trade and logistics expand in Uzbekistan, especially along international transport corridors, small logistics hubs benefit from 3 ton portable gantry crane for loading and unloading cargo without investing in expensive fixed systems.
