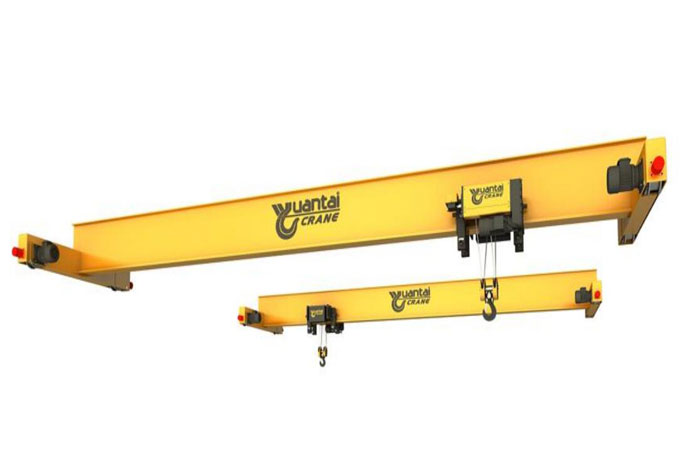

5 Ton Overhead Crane

The 5 Ton Overhead Crane is a robust and versatile lifting solution designed for various industrial applications. Featuring a durable metal structure with a partial rail box beam or H beam design, the 5 ton overhead crane ensures precision and smooth operation. The electrics of the crane are equipped with a safety sliding contact line and offer control flexibility, allowing independent management of hoisting, trolley, and single girder movements. Safety is prioritized through features like anti-falling protection, rain covers, acousto-optic alarming devices, and wireless anti-collision systems. Control options include both pendant and remote control modes, catering to different operator preferences. The 5 ton overhead crane electrical system incorporates corrosion-resistant panels, heavy-duty plug sockets, and logically arranged components for ease of maintenance. With a focus on safety, durability, and efficient operation, the 5 Ton Overhead Crane is an ideal solution for handling loads in industrial settings.

Different Types of 5 Ton Overhead Crane Price:

5 Ton Overhead Crane Metal Structure Overview:

The 5 Ton Overhead Crane features a robust metal structure designed for efficiency and safety in various industrial applications. Below are key details about its construction:
1. Main Beam:

• Partial rail box beam or steel beam design.
• End beam made of welded steel (rectangular tube).
• Connection between end beam and main beam using 10.9 high-strength bolts.

2. Box Girder:

• Utilizes a partial rail beam or H beam structure.
• Steel plate welding forms the box girder.
• Steel plate material: Q235-B.
• Vertical deflection limited to L/800.
• Shot blasting pretreatment for all steel, achieving Sa2.5 level standard.

3. Welding Process:

• Thorough pre-welding inspection and cleaning.
• Automatic welding machine used for welding (MIG or semi-automatic).
• All welds undergo X-ray nondestructive flaw detection.

4. Rectangular Steel Pipe:

• Beam made of rectangular steel pipe or welded form using numerical control machine tools.
• Material of steel plate: Q235-B.

5. End Beam Features:

• Each end beam equipped with double rims of wheels.
• Buffers and derailment protection devices ensure safe operations.

6. Precision and Connection:

• Main beam and end beam connected using 10.9 high-strength bolts.
• Ensures precision and smooth running of the entire machine.

5 Ton Overhead Crane Safety Protection Features:

1. Anti-Falling Protection:

• Implemented for the Three-in-One electric motor of both the trolley and overhead crane.
• Purpose: Prevents accidental falling and enhances operational safety.

2. Rain Cover:

• Installed for the lifting mechanism of outdoor cranes, electric cabinet, and driving mechanism.
• Purpose: Protects crucial components from adverse weather conditions, ensuring longevity and reliability.

3. Acousto-Optic Alarming Device:

• Integrated safety feature.
• Purpose: Provides audible and visual alerts in case of potential hazards, enhancing awareness and response time.

4. Wireless Anti-Collision Device:

• Employed as a proactive safety measure.
• Purpose: Detects and prevents collisions by utilizing wireless technology, enhancing overall safety during crane operations.

These safety protection features collectively contribute to the secure and efficient operation of the 5 Ton Overhead Crane. The combination of anti-falling protection, rain covers, acousto-optic alarming devices, and wireless anti-collision devices reflects a comprehensive approach to ensuring the safety of both equipment and personnel in various operational environments.

5 Ton Overhead Crane Control Modes:

1. Pendant Control:

• Ease of Use: Control is facilitated through a pendant, making it easy to operate. No additional driver is necessary for operation.
• Safety Features: Equipped with a double block button to achieve a safety stop.
• Installation: Pendant can be of the following type or an independent sliding type suspended under the hoist.
• Durability: Protection class IP65 ensures resistance against dust and water. Designed for a lifespan of 500,000 control cycles.

2. Remote Control:

• Ease of Use: Control is wireless, allowing freedom of operation from the ground. No additional driver is required for operation.
• Interference-Free Operation: Tens of thousands of frequency points enable non-interference with each other.
• Control Options: Two steps push button or joystick station with an emergency stop for flexible and precise control.
• Durability: Protection class IP65 safeguards against dust and water. Engineered for a lifespan of 500,000 control cycles.

These control modes provide operators with options based on their preferences and specific operational requirements. The pendant control offers simplicity and a direct interface, while the remote control adds flexibility and convenience, allowing operators to manage the crane from the ground with advanced safety features and durability considerations in both modes.

5 Ton Overhead Crane Electrics Overview:

Power Supply:

• Utilizes a safety sliding contact line for secure and efficient power distribution.
• Equipped with a protection function in case of a default phase, enhancing overall safety.

Control Flexibility:

• Hoisting, trolley, and single girder overhead crane movements are independently controlled.
• Capable of running simultaneously or independently, providing operational flexibility.

Vibration Control:

• Features a dedicated vibration control contactor specifically designed for the single girder overhead crane.

Control Panels:

• Corrosion-resistant control panels with a protection class of IP55, ensuring durability in various environments.
• All plug sockets incorporate heavy-duty plug heads with reliable sealing and firm insertion.

Layout and Maintenance:

• Components in the control box are logically arranged, promoting ease of maintenance.
• Plug connection parts are protected by insulating plastic casing for added safety.

Cabling System:

• All cables are coded with numbers, facilitating easy identification and maintenance.
• Trolley movement is powered by an insulated PVC flat cable, specially designed for cranes, with a stress level reaching 450/750V.

Mobile Power Supply System:

• The trolley's mobile power supply system comprises a flat cable, galvanized slides, and a small cable jigger, ensuring smooth sliding during operations.
